Full granulation function and high production efficiency

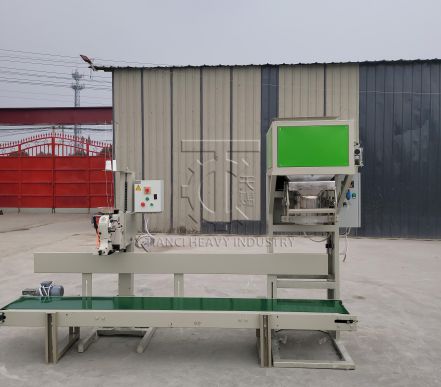

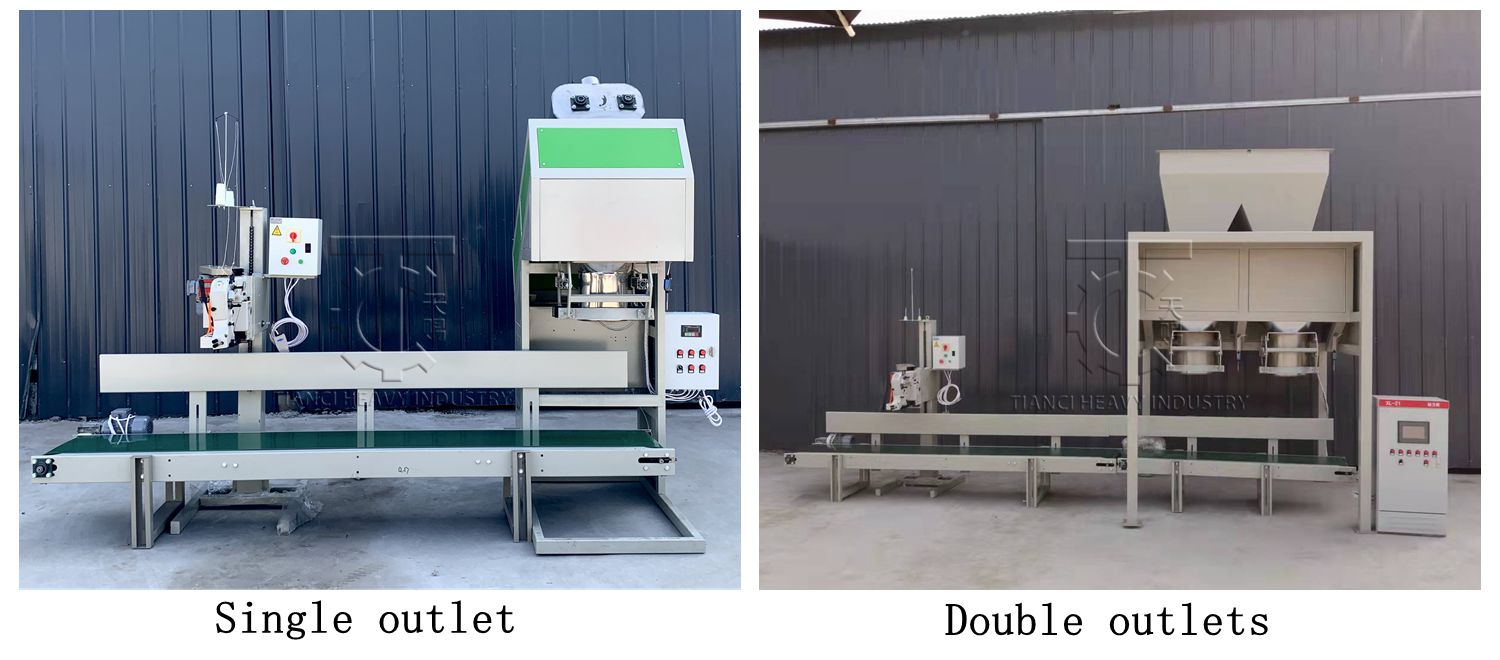

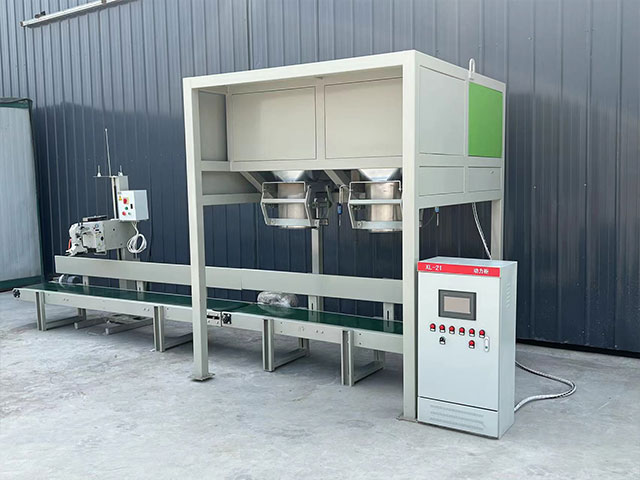

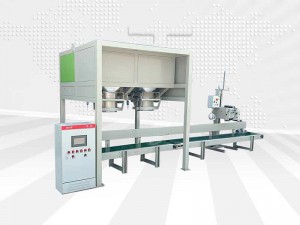

Packaging Machine
Get quotation
+8613203835178Product Despriction
Automatic quantitative packaging for powdery materials in floor, starch, feed, fertilizer, food, chemical industry, light industry, building materials and other industries.
Features
1 High precision: select high-precision weighing controller, good reliability, good integrity, small footprint, flexible and convenient installation;
2 Adjustable speed: the feeding method of powder equipment is screw feeding, fast feeding and slow feeding are realized by the controller, and the feeding speed can be set arbitrarily;
3 Environmental protection operation: closed circulation system can effectively prevent dust from flying, improve the working environment and protect the health of employees;
4 Reasonable structure: compact structure, small size, can be made into fixed or mobile body according to user requirements;
Technical Parameters
|
NO. |
Device name |
Technical parameter |
DSC-25F |
|
1 |
Computer quantitative scale(scale) |
Weighting range(KG) |
10-25 |
|
Weighting sped(bag/h) |
200-3000 |
||
|
Allowable error |
0.2% |
||
|
Equipped with power |
2.2kw |
||
|
Equipped with gas source |
0.4-0.6Mpa,0.1m³/min |
||
|
Weight(kg) |
500 |
||
|
2 |
Weighting control instrument |
|
GM8804C |
|
3 |

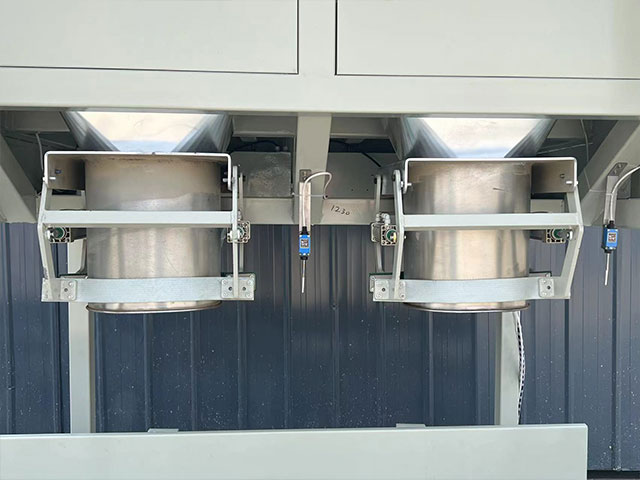

Bag clamping mechanism |
Weight(kg) |
60 |
|
4 |

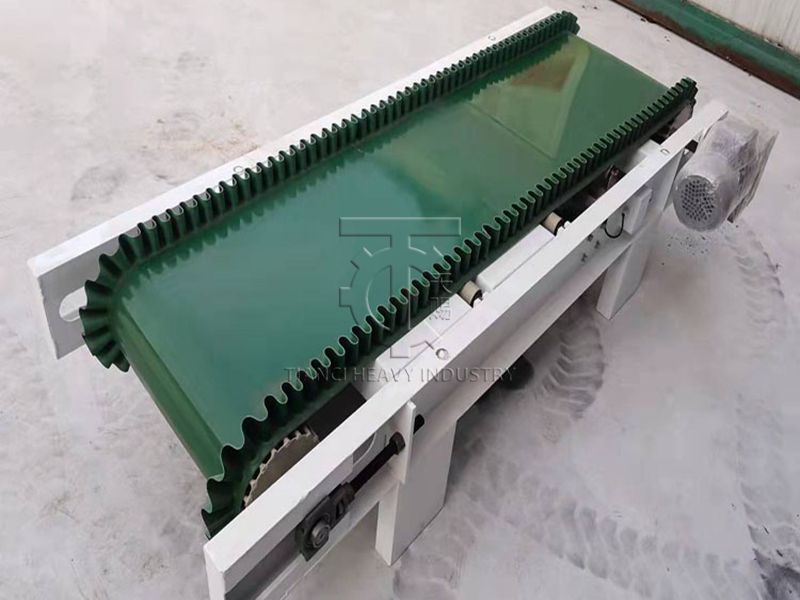

Conveyor |
Transmission distance (M) |
2.0 |
|
Equipped with power(KW) |
0.37 |
||
|
Weight (KG) |
240 |
||
|
5 |
Slot machine |
Equipped with power (KW) |
0.55 |
|
Weight (kg) |
100 |
||
|
6 |
Outline dimension |
Outline dimension (MM) |
2332*1225*1058 |
|
Weight (kg) |
450 |
Working Project

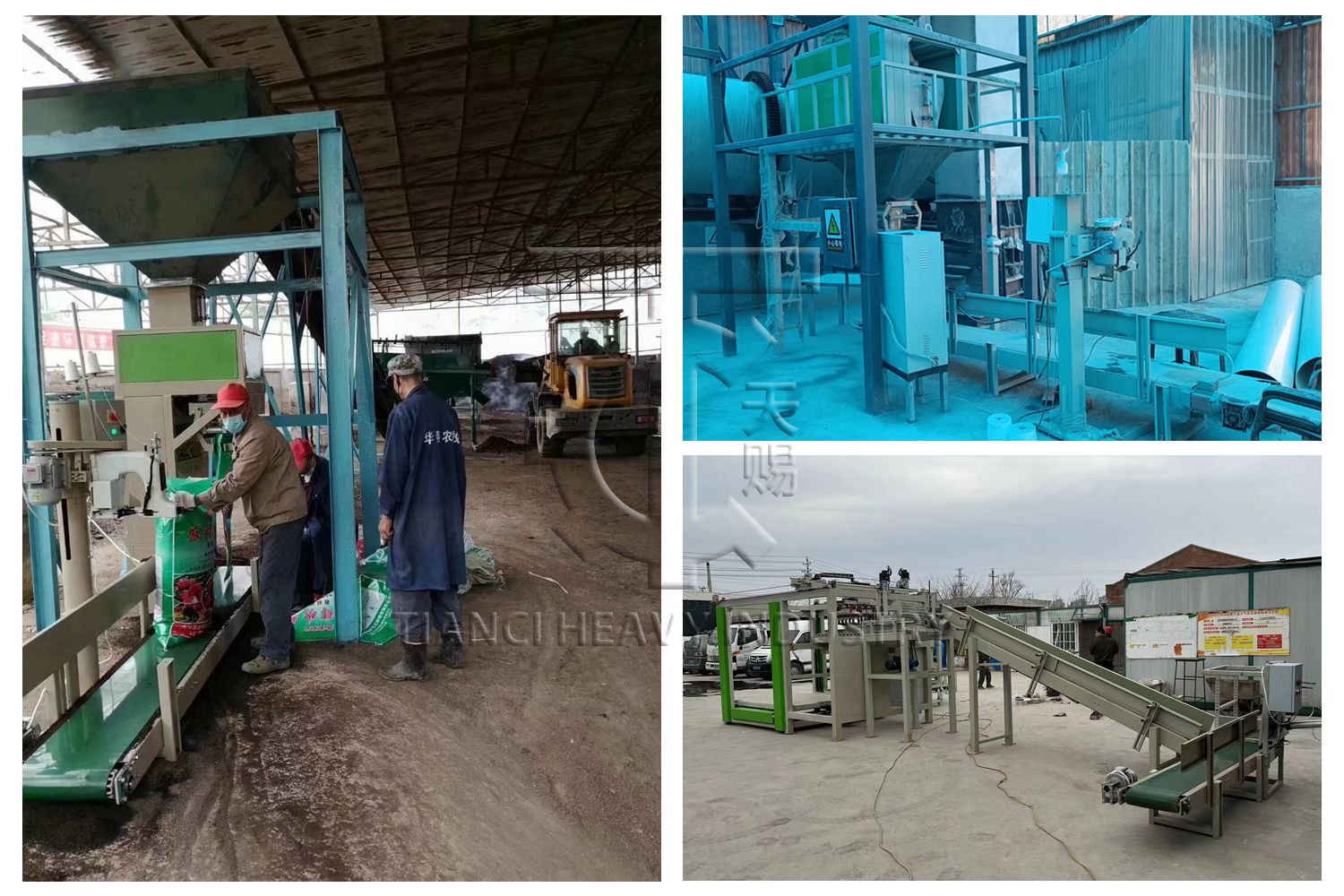

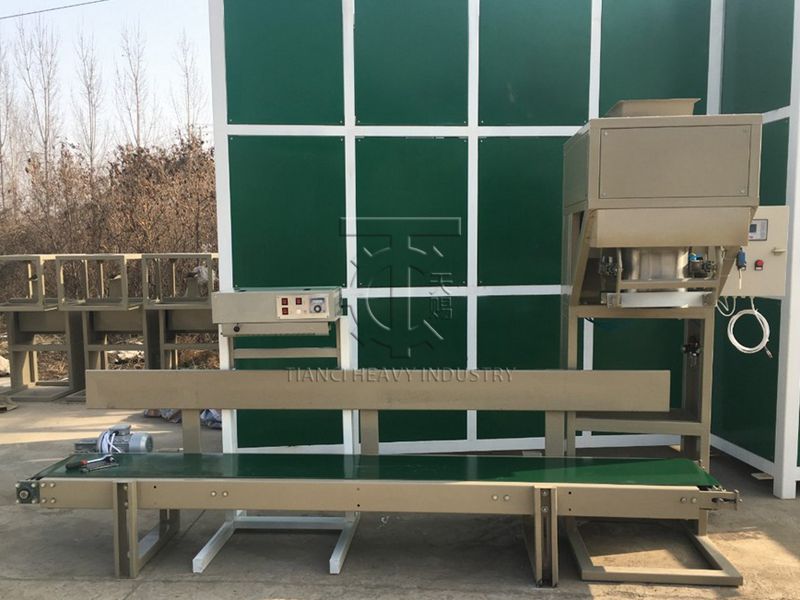

Packaging machine in the fertilizer production line:

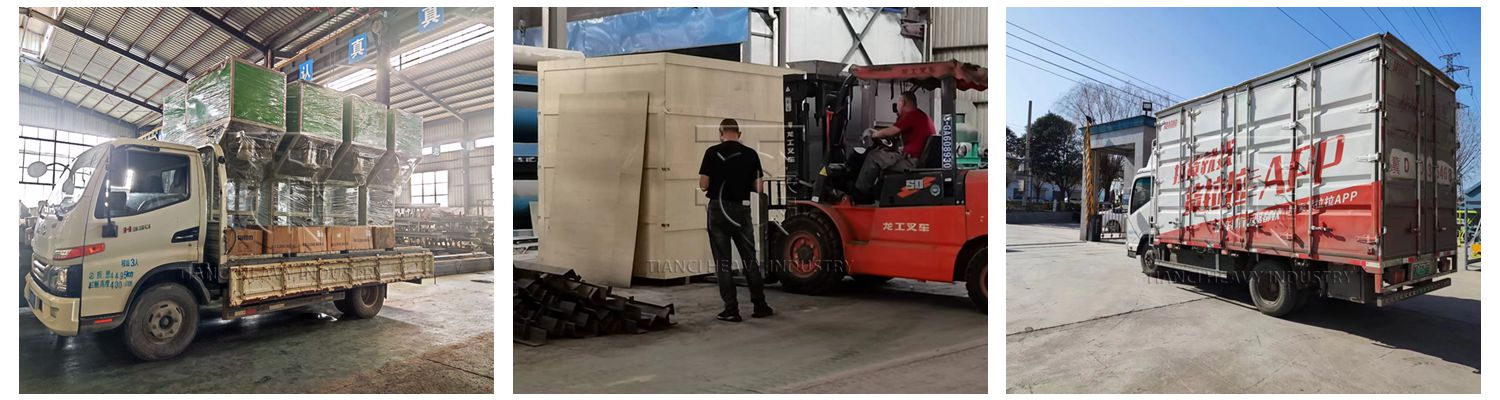

Delivery
Package : wooden package or full 20GP/40HQ container
