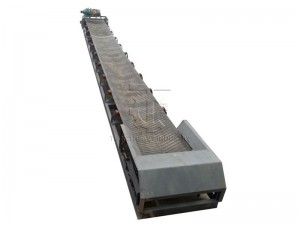

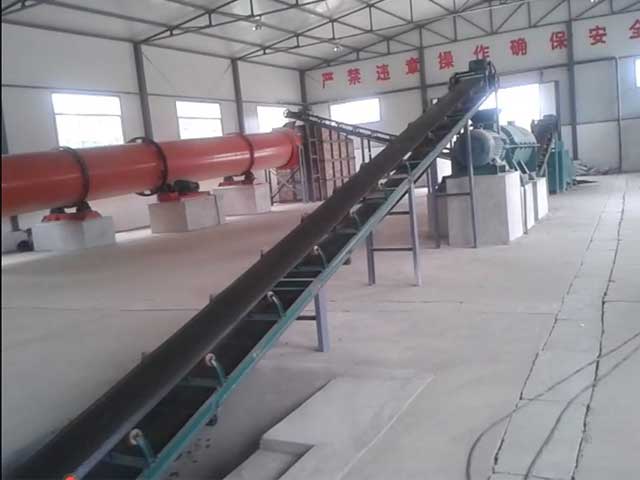

Belt Conveyor

Usage: Conveying materials for the production line
Production Capacity: 9- 360 m³/h
Bandwidth: 300-800 mm
Applicable Materials: It is widely used in agriculture, building materials, chemical industry, metallurgy and other work sectors.

Get quotation

+8613203835178

Product Detail

Product Tags

Product Despriction

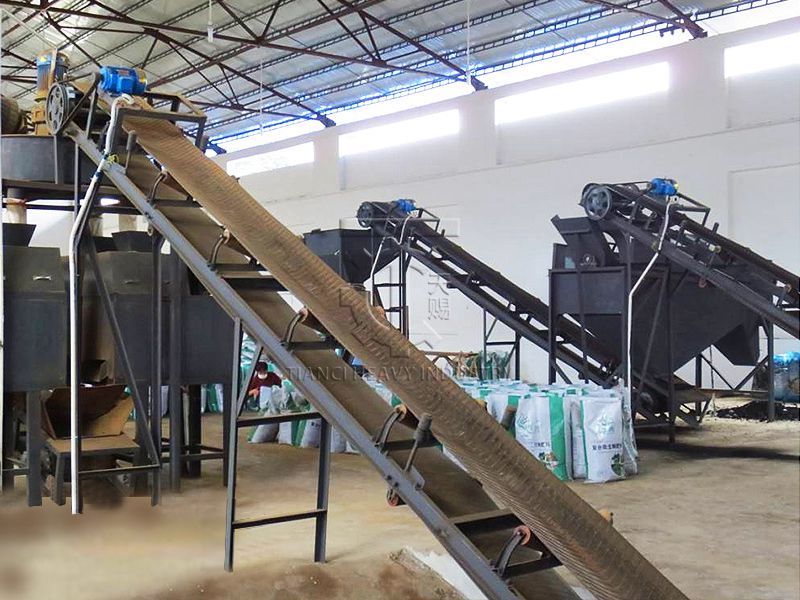

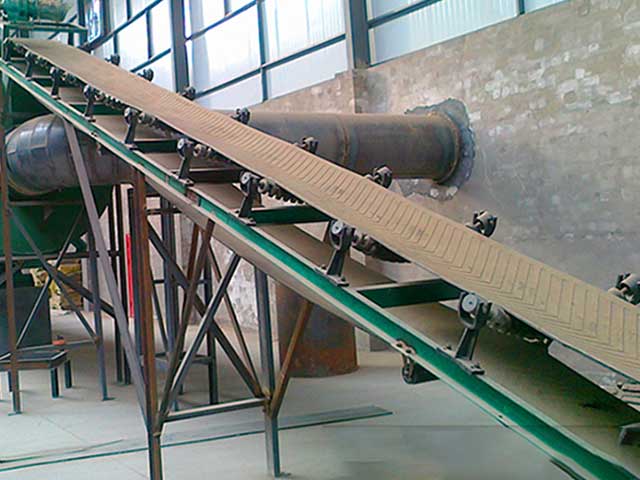

Belt conveyor is the main equipment of fertilizer production. Conveyor belt movement according to the principle of friction transmission, suitable for conveying bulk density less than 1.67 ton / CBM, that easy to extract the powder, granular, small pieces of low-cut materials and bags of materials, such as coal, gravel , sand, cement, fertilizer, grain and so on. It is also can used in the transportation and production lines of mining, metallurgy, chemical, foundry, building materials and other industries, as well as hydropower station construction sites and ports.

Belt conveyor can be used in the ambient temperature -20℃ to +40℃range, the temperature of transmission materials are less than 60℃.

Working Principle of Belt Conveyor:

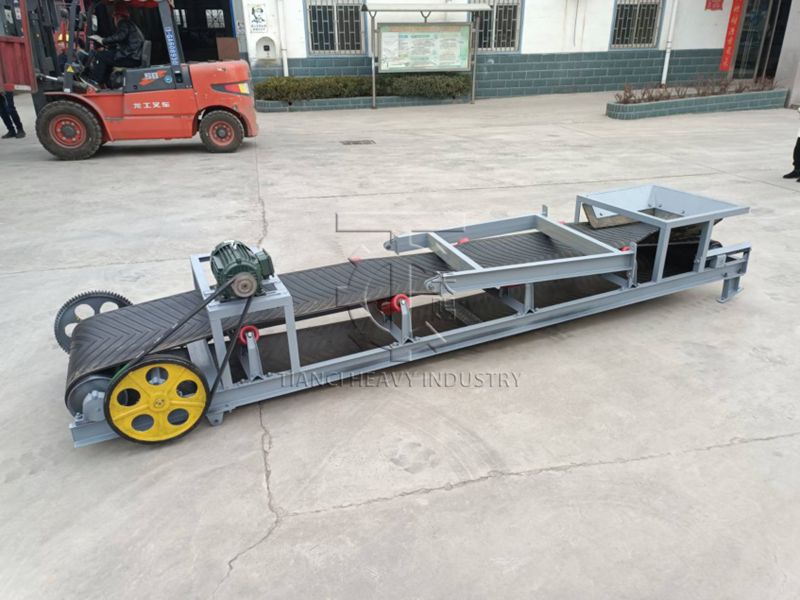

The belt conveyor consists of two end rollers and a closed conveyor belt on it. 1.The drum that drives the rotation of the conveyor belt is called the drive roller; The other is only the drum that changes the direction of movement of the conveyor belt.

2.The drive drum is driven by the motor through the reduce driver, and the conveyor belt is depend on the friction between the drive roller and the conveyor belt.

3.Driving rollers are generally mounted on the discharge side to increase traction and facilitate dragging.

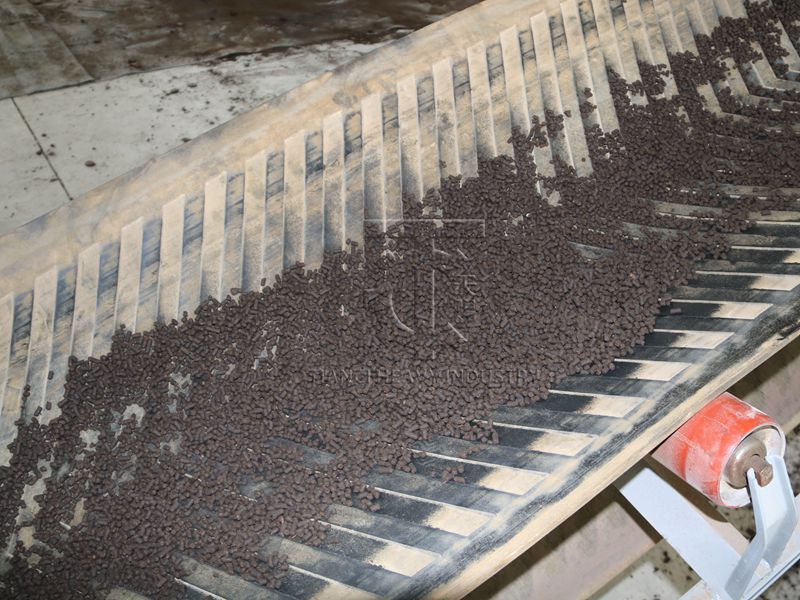

4.The material is fed by the feed end and falls on the rotating conveyor belt, which is driven by the conveyor belt friction reach to the discharge end.

Main Technical Parameters

Belt width(mm)	Conveying length(M) Power(KW)			Conveying speed(m/s)	Delivery quantity(t/h)
500	≤12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	≤12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	≤6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	≤10 5.5	10-20 7.5-11	20-40 11-22	1.3-2.0	435-853
1200	≤12 7.5	10-20 11	20-30 15-30	1.3-2.0	655-1284
