Full granulation function and high production efficiency

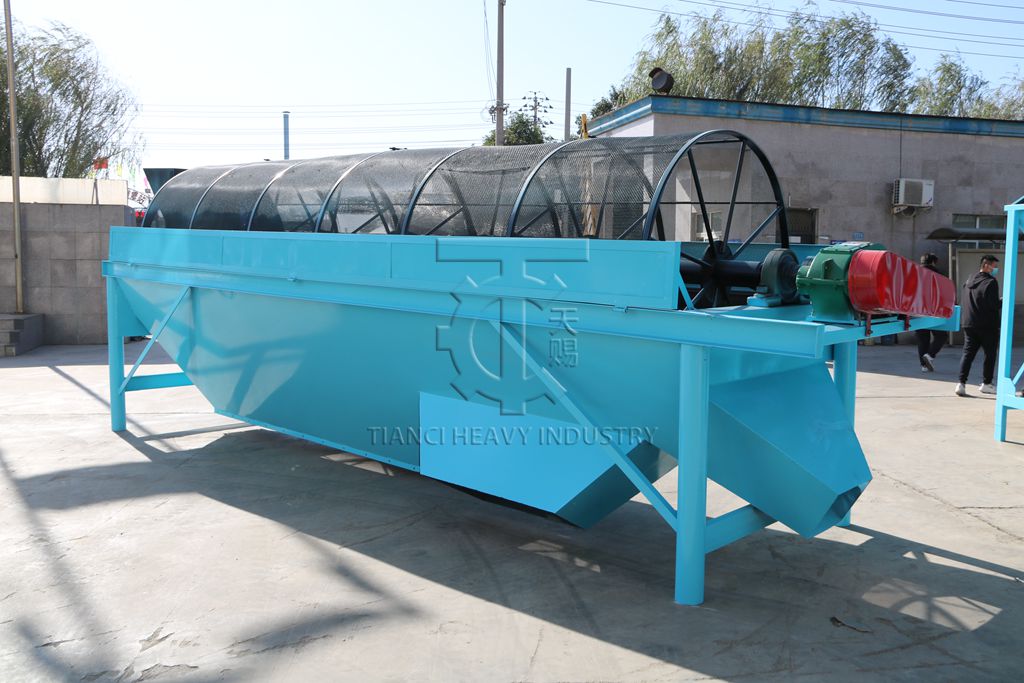

Rotary Screening Machine, For particles less than 30mm in diameter

  • Production Capacity: 1- 50 t/h
  • Matching Power: 2.2-22kw
  • Dip-angle: 2°-2.5 °
  • Application: fertilizer production and processing
  • Applicable Materials: Ammonium bicarbonate, urea, ammonium chloride, ammonium phosphate, potassium chloride.
  • This series of drum screening machines is a common equipment in the production of compound and organic fertilizers. It is mainly used for the separation of finished products and returned materials, and can also achieve product classification, so that the finished products can be evenly classified. It has simple structure, convenient operation and stable operation. It is an ideal equipment in the production of compound and organic fertilizer line .

Product Detail

Product Tags

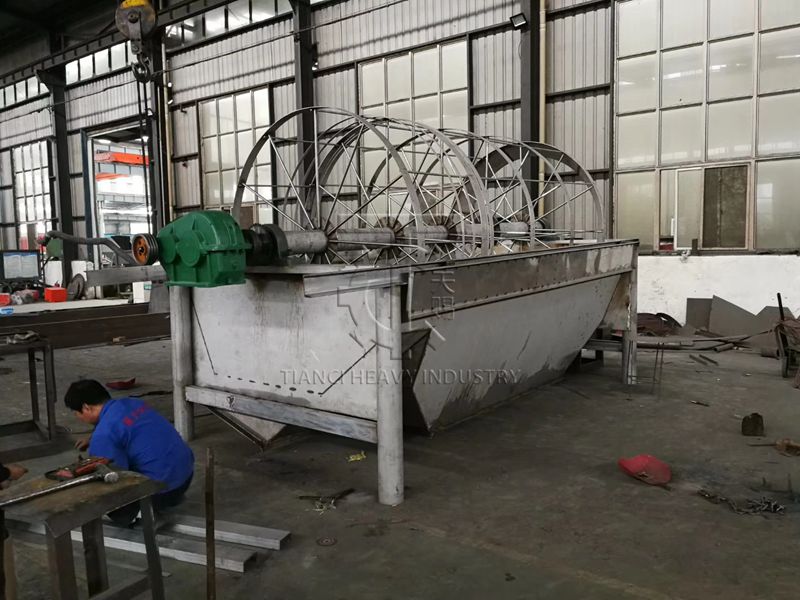

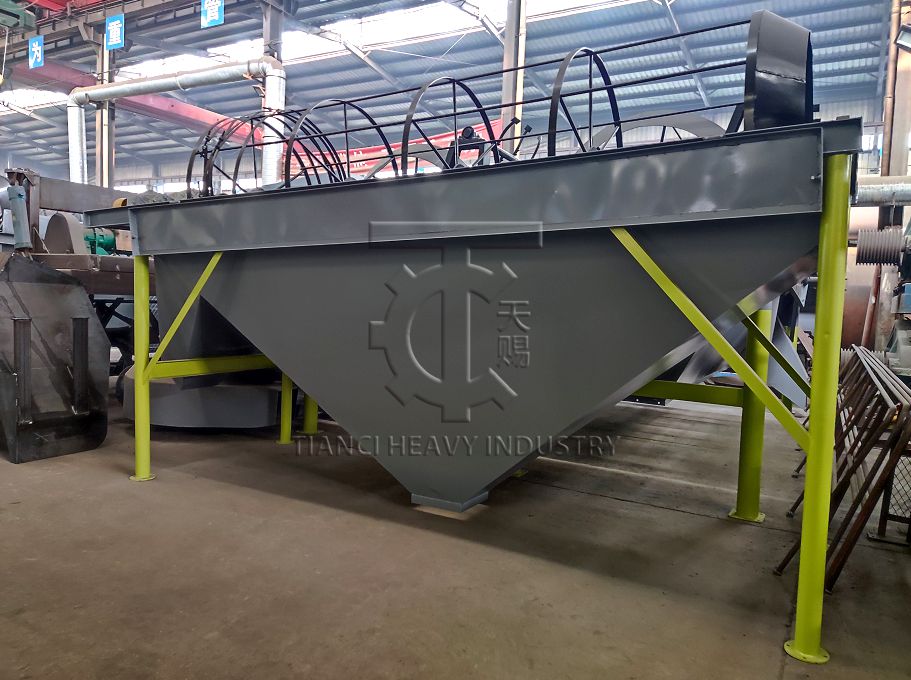

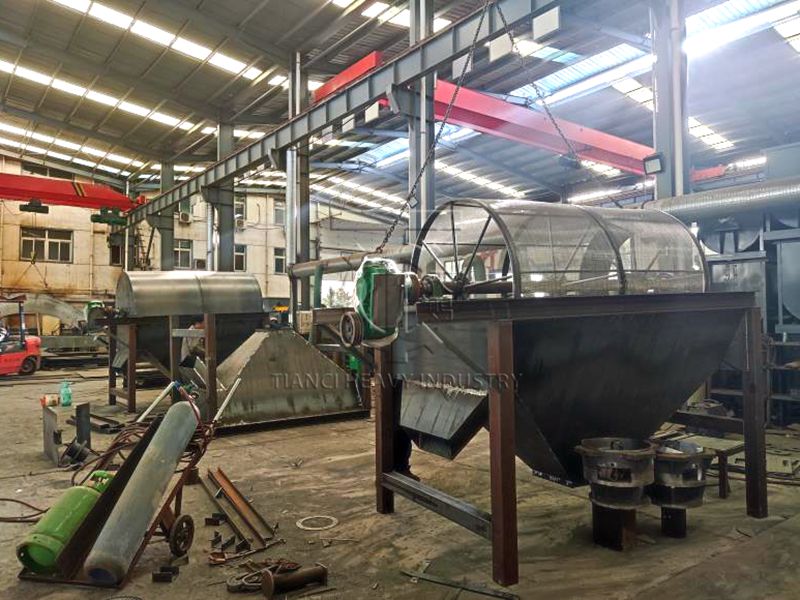

The Machine Can Be Divided Into Three Parts

1. Frame part: the frame of this machine is welded with high-quality carbon steel plate and channel steel, and has passed strict product qualification certification and specific process requirements, and has achieved the purpose of this machine;

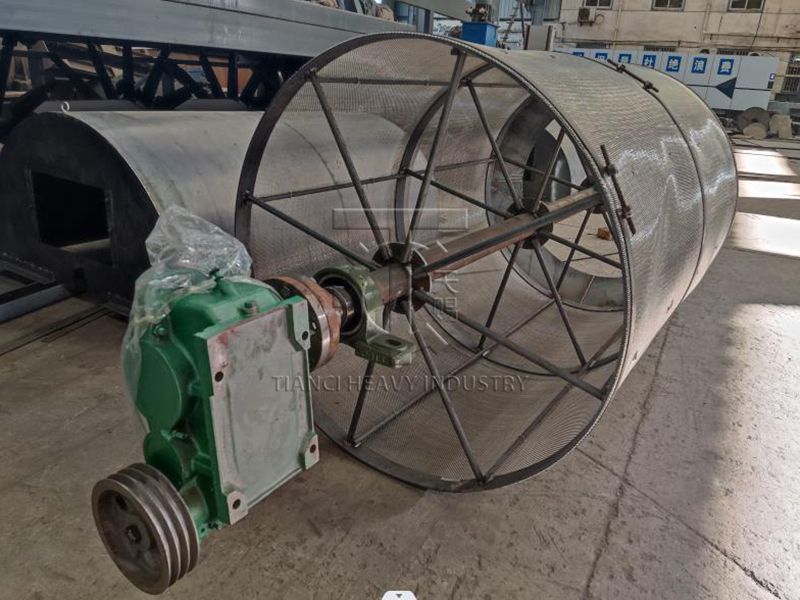

2. Transmission and screening part: This part adopts a combined screen, which is transmitted to the main shaft by the transmission wheel through the coupling, and the screen is installed and welded on the rolling cage of the main shaft. The material enters from the feeding end, is continuously rotated and graded in the rolling cage, and flows out evenly from the lower discharge port, which effectively separates the finished product from the returned material, thereby reducing labor intensity;

3. Transmission connection part: The motor drives the pulley, the V-belt and the reducer to drive, so that the main shaft rotates. The transmission reducer and the working part of the main engine are driven by the pin-type coupling, which is convenient for assembly and maintenance.

Technical Parameters

Model

Cylinder

Rotary speed

Inclination

Power

Production capacity

Outline dimension

Weight

Diameter

Length

L×W×h

mm

mm

r/min

°

kw

t/h

m

t

GS1.0×3.0

1000

3000

22

2-2.5

2.2

1-3

3.5×1.4×2.2

1.5

GS1.2×4.0

1200

4500

17

2-2.5

3.0

3-5

5.2×0.6×2.4

2.3

GS1.5×5.0

1500

5000

14

2-2.5

5.5

5-10

5.7×1.6×2.4

2.5

GS1.6×6.0

1600

6000

12

2-2.5

7.5

10-20

6.9×1.9×3.0

3.8

GS1.8×7.0

1800

7000

11.5

2-2.5

11

20-25

7.3×2.0×3.0

4.7

GS1.8×9.0

1800

9000

11.5

2-2.5

18.5

20-30

9.0×2.2×3.2

6.0

GS2.0×10

2000

10000

10

2-2.5

22

25-50

9.0×2.2×3.2

7.2

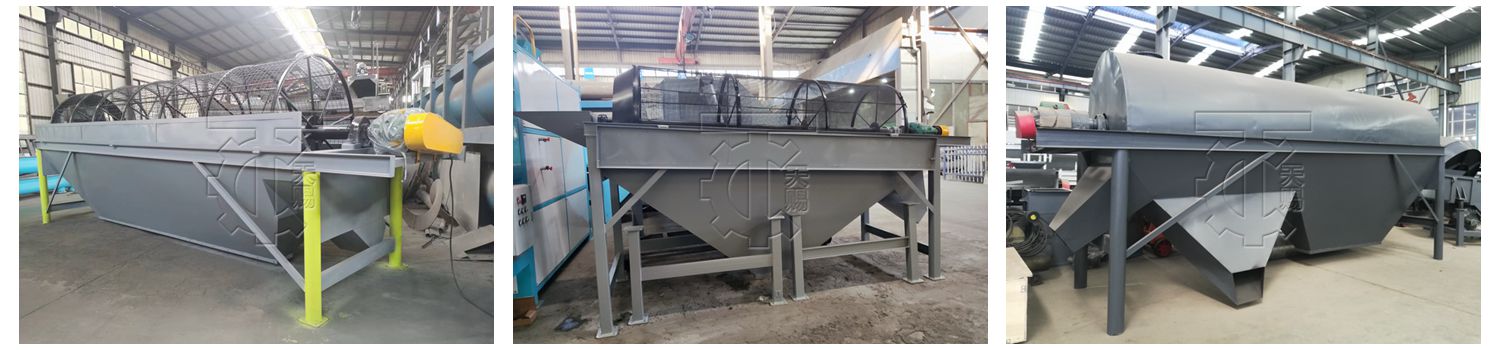

004-Rotary-Screening-Machine
003-Rotary-Screening-Machine
002-Rotary-Screening-Machine

Request a Quote

1

Select model and place orders

Select the model and submit the purchase intention

2

Get the base price

Manufacturers take the initiative to contact and inform the lo

3

Plant inspection

Expert training guide, regular return visit

4

Sign the contract

Select the model and submit the purchase intention

Get the minimum offer free of charge , please fill in the following information to tell us ( confidential information , not open to the public )

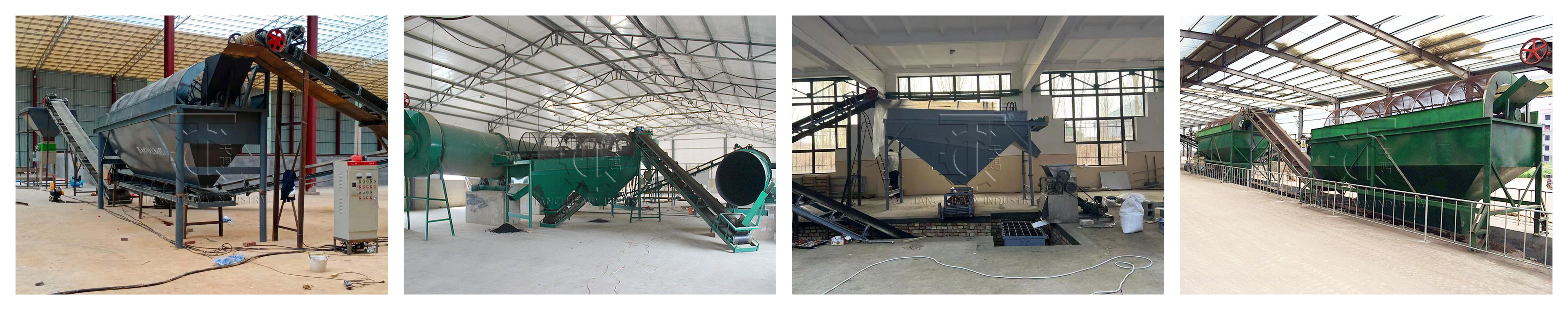

Project Case
