High Quality Compost Fertilizer Production - Organic fertilizer rapid fermentation tank – Tianci

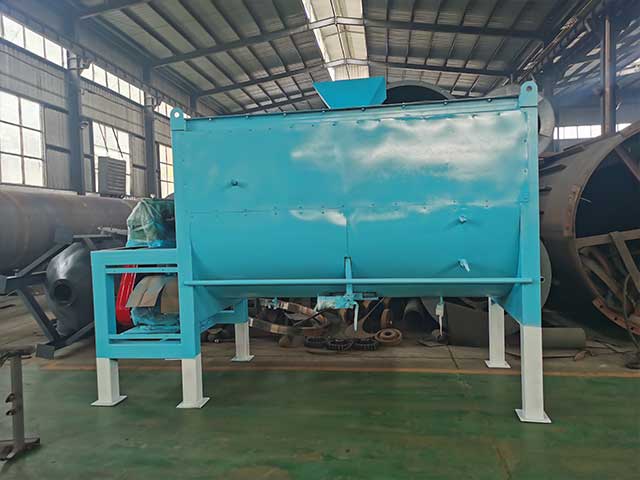

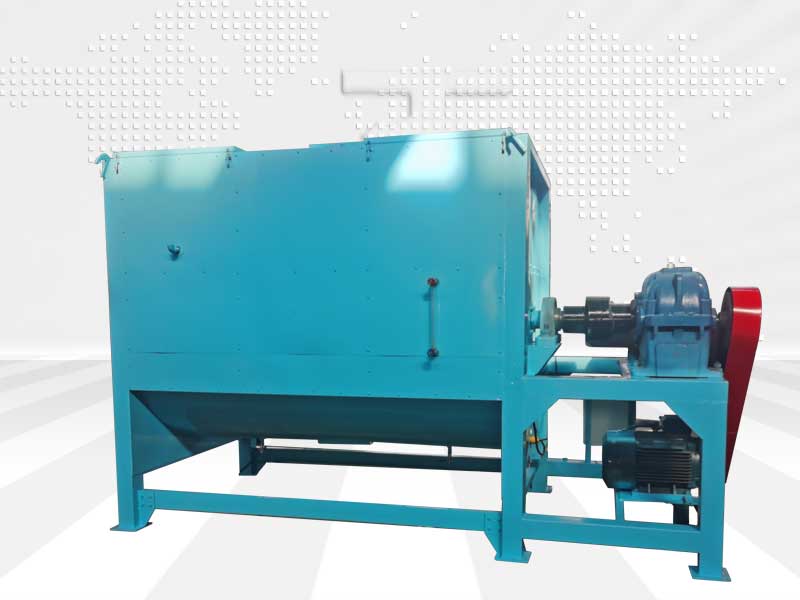

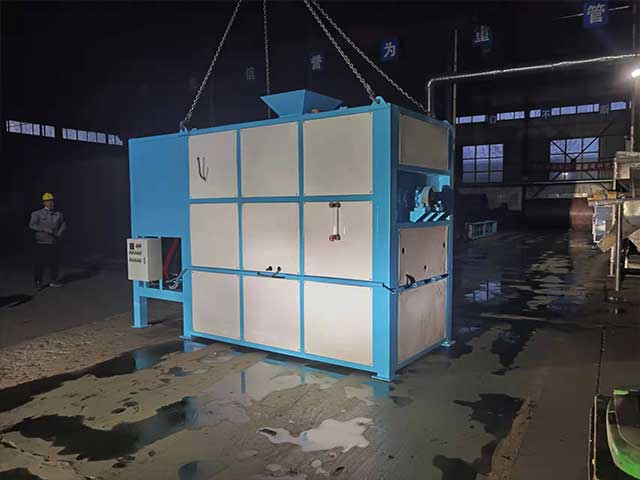

Horizontal Fermentation Tank Includes

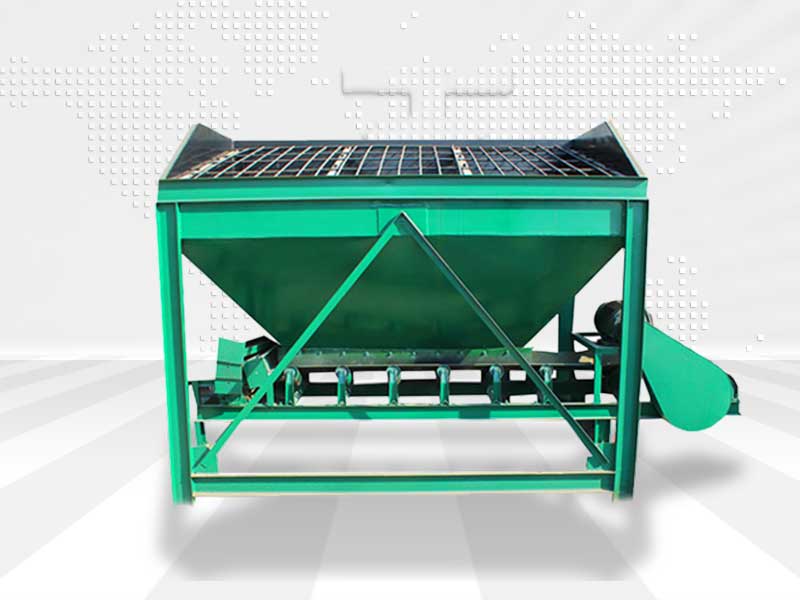

1. Feeding system

2. Tank fermentation system

3. Power mixing system

4. Discharging system

5. Heating and insulation system

6. Maintenance part

7. Fully automated electrical control system

Performance Characteristics

1. There is no need to build a production workshop and the floor area is small.

2. The fermentation process is sealed in the tank body and will not pollute the air.

3. The fermentation process is heated by external circulation, which can completely kill harmful bacteria and insect eggs.

4. The barrel of the fermentation tank is made of corrosion-resistant steel, which effectively extends the service life.

5. The internal heat transfer oil of the equipment adopts imported high-temperature heat transfer oil as the constant temperature heat value transmission medium, which has obvious advantages of high boiling point, stable heat transfer performance, high heat exchange efficiency, good heat transfer effect and high heat utilization rate.

Working Principle

In the first step, the raw materials are lifted to the feeding port by the elevator (bucket elevator or large inclination conveyor) and then enter the fermentation tank. When the organic raw materials enter the fermentation tank, the main motor of the mixing shaft starts, and the motor reducer drives the main shaft to start mixing. Then, the spiral blade on the stirring shaft turns over together with the material to fully contact the material with the air and start the aerobic fermentation stage.

In the second step, the electric heating rod heating system at the bottom of the boiler controlled by the electric cabinet is used to heat the heat transfer oil in the interlayer of the boiler. The temperature of the tank is regulated by a temperature sensor, which heats to achieve the optimal fermentation conditions. After the fermentation of the materials is completed, the materials are discharged through the outlet of the tank and processed in the next step.

Parameters
