Full granulation function and high production efficiency

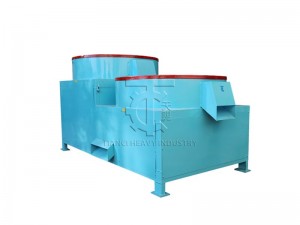

Fertilizer Throw Round Shaping Machine

Usage: Used to make the appearance of granules round and smooth, easy to store

Production Capacity: 2-10t/h

Ball Forming Rate: >95%

Raw Materials: NPK compound and organic fertilizer granules


Product Detail

Product Tags

Product Despriction

This machine is used for the rounding process of various organic fertilizers and bio-organic fertilizers after extrusion and granulation, as well as the rounding process of chemical and feed production processes. It is the first choice equipment for small and medium-sized chicken farms, organic fertilizer factories and feed factories to make granule rounding process.

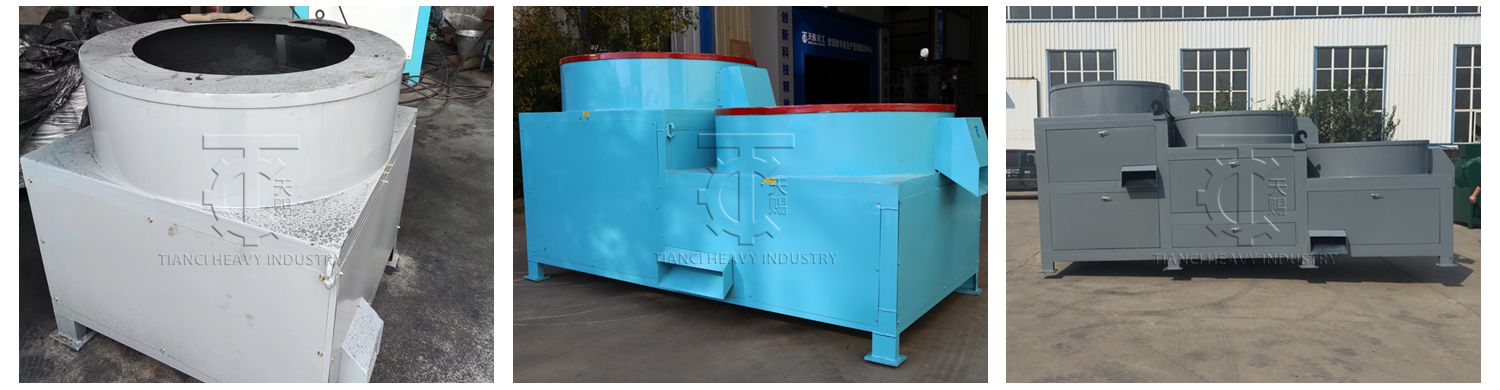

round shape machine12

You can choose machines with different output according to your needs.

Finished Granules

granules

Features and Parameters

Features:

1. High output and can be flexibly arranged in the process;

2. High ball rate.The particle size of the finished product is consistent, round and smooth, and the finished product rate is as high as 97%.

3. Beautiful appearance, simple structure and working principle, safe and reliable, small size, light weight, and convenient operation and maintenance;

4. It can maintain continuous long-term operation, with low power consumption, electrode saving, low production cost, and high economic benefits.

Model

PYJ

800-2

PYJ

1000-2

PYJ

1200-2

PYJ

1200-3

PYJ

1500-2

PYJ

1500-3

Output (t/h) 2.5-3.5 3.5-5 4-7 6-9 5-8 7-10
Ball forming rate >95% >95% >95% >95% >95% >95%
Temperature rise <30° <30° <30° <30° <30° <30°
Power(kw) 4*2 5.5*2 7.5*2 7.5*3 11*2 11*3
Swing disc diameter(mm) 800mm 1000mm 1200mm 1200mm 1200mm 1500mm

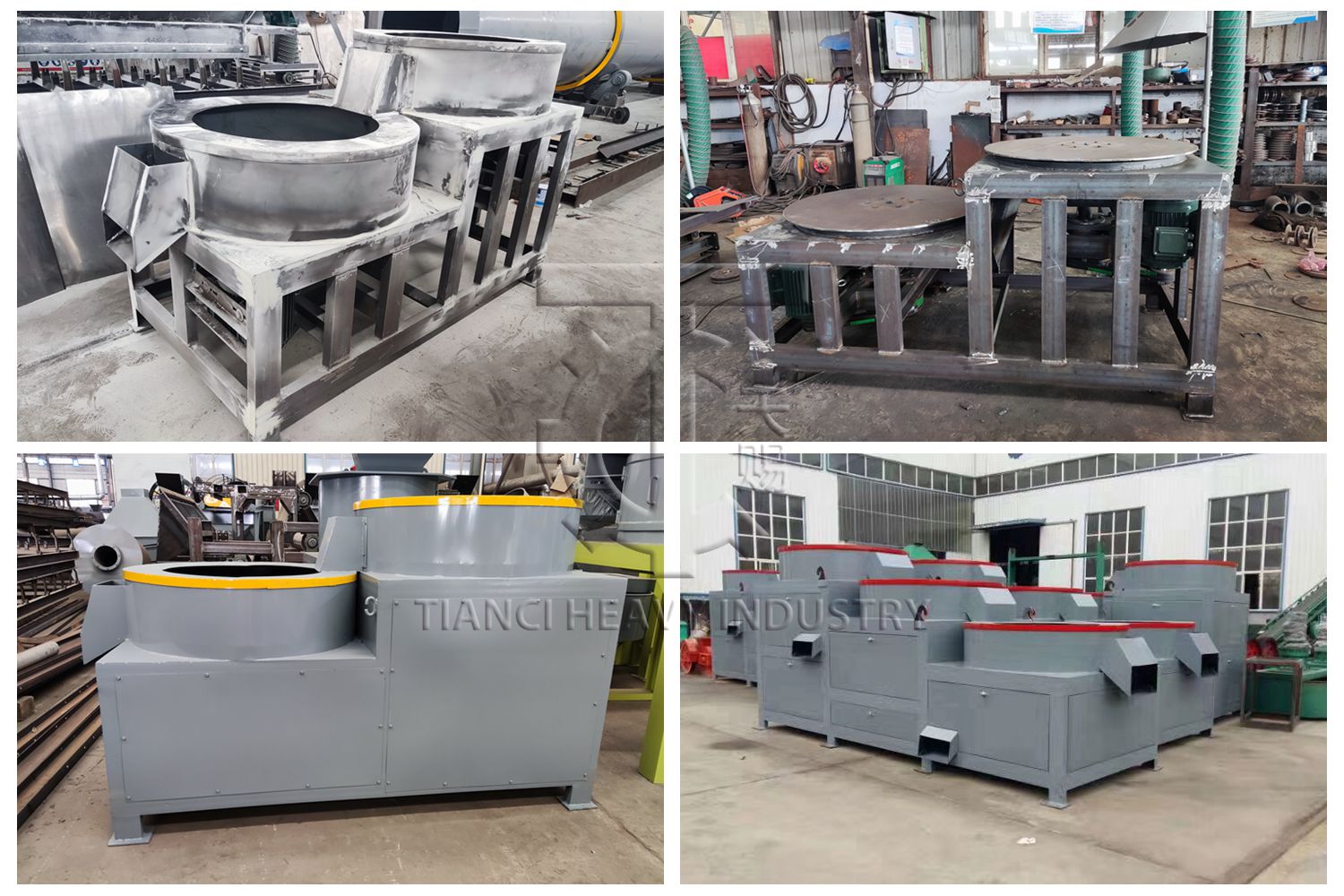

round shape machine13

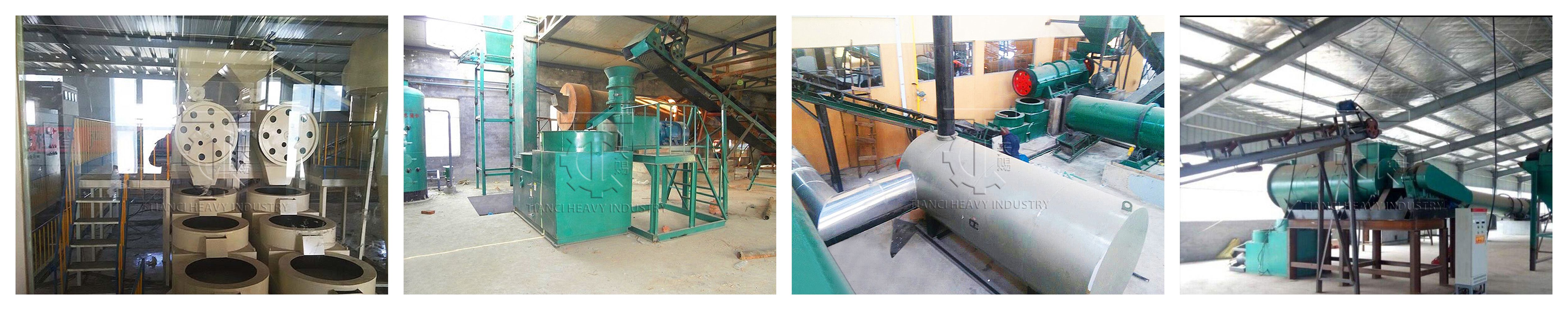

Working Project

The machine is mainly used in conjunction with the granulator to increase the granulation output and achieve smooth and bright appearance of the granules.

working project

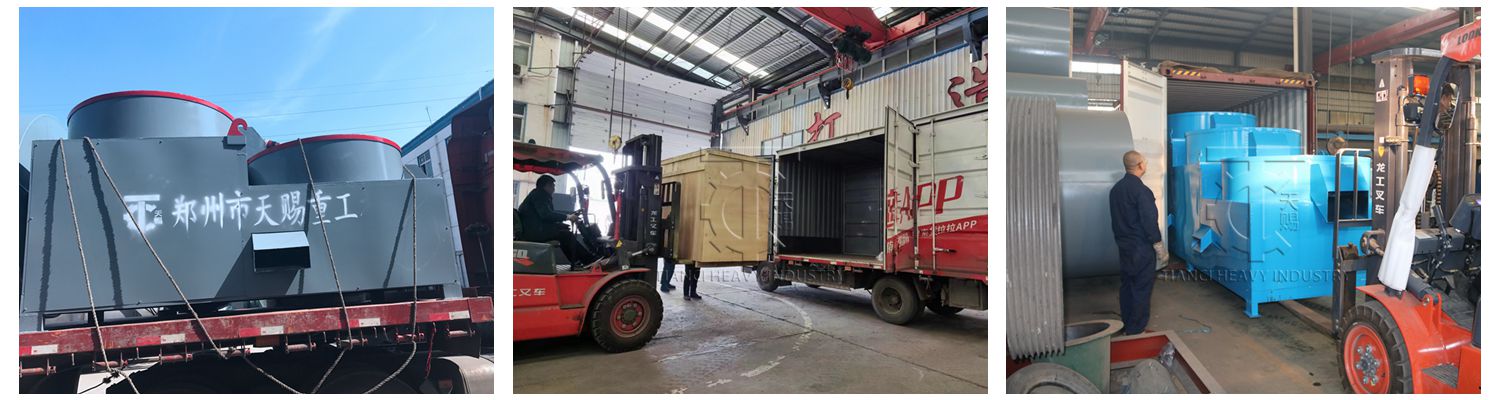

Delivery

Package : wooden package or full 20GP/40HQ container

delivery
