Product

Full granulation function and high production efficiency

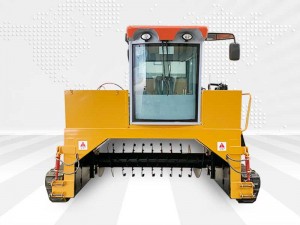

Crawler Type Compost Turner

  • Usage: Compost fermentation for organic manure
  • Production capacity: 500-1000 m³/h
  • Turning Width: 2400-3000 (mm)
  • Turning Depth: 500-1500 (mm)
  • Product highlights: Reduce production and construction investment and save production building area
  • Applicable materials: Cattle manure, chicken manure, poultry manure, grass ash, lignite, straw, bean cakes,Corn straw etc.

Product Detail

Product Tags

Product Introduction

The crawler-type turner is a ground pile fermentation method, and it is the most economical way to save soil and human resources at present. The materials need to be stacked into piles, and then regularly stirred and pulverized by the turning machine, and the organic matter is decomposed under aerobic conditions. When the turning machine is working, sludge, sticky chicken manure and other materials can be well mixed with fungi and straw powder, creating a better aerobic environment for the fermentation of materials. In the fermentation process, it can effectively prevent the generation of harmful and malodorous gases such as hydrogen sulfide, amine gas, indole, etc., and meet the requirements of environmental protection production.

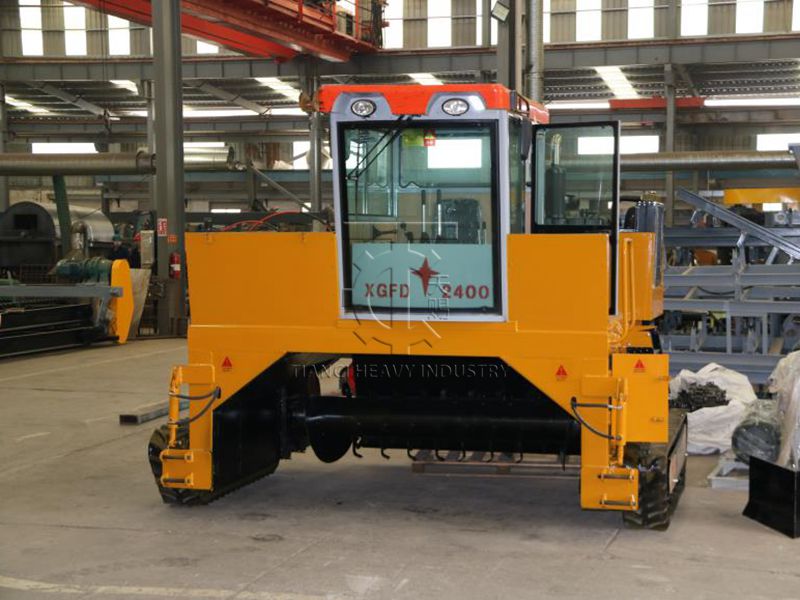

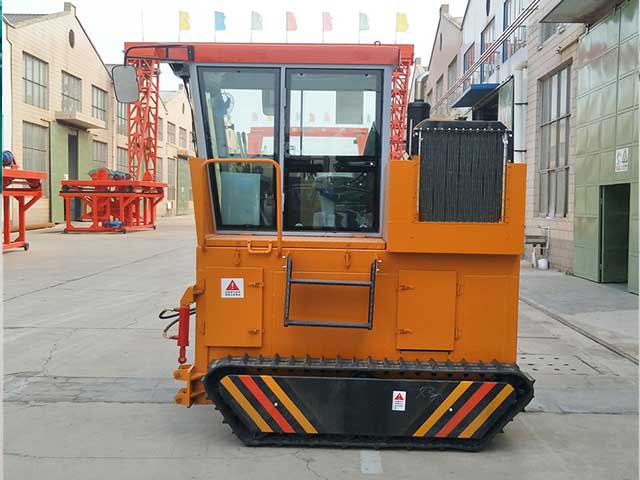

crawler type compost turner

Parameters

Model (m)

Turnover width (mm)

Stacking height (mm)

Stacking row spacing (mm)

Maximum particle diameter (mm)

Power (HP)

Working knife diameter (mm)

Working Speed (m/min)

Processing Capacity (m3/h)

TCLDF-2400

2400

600-1000

800-1000

250

75

400

6-10

500-700

TCLDF-2600

2600

1100-1300

800-1000

250

116

500

6-10

1000-1200

TCLDF-3000

3000

1300-1500

800-1000

250

136

500

6-10

1300-1500

TCLDF-3000 (Full hydraulic)

3000

1600-1800

100-1000

250

143

800

6-10

1500-1800

crawler type compost turner

Working Project

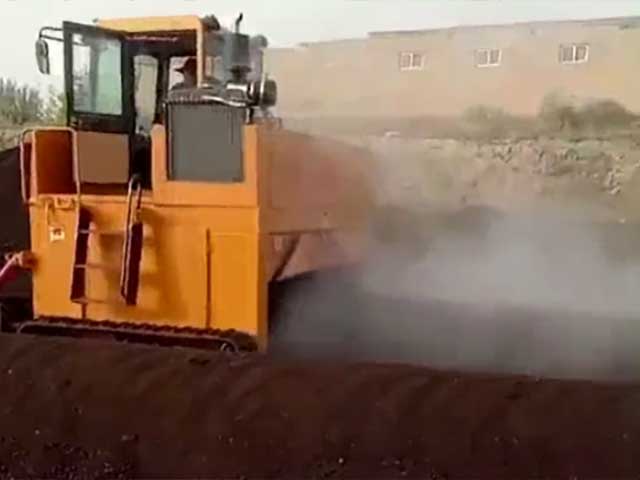

CRAWLER TYPE COMPOST TURNER (1)

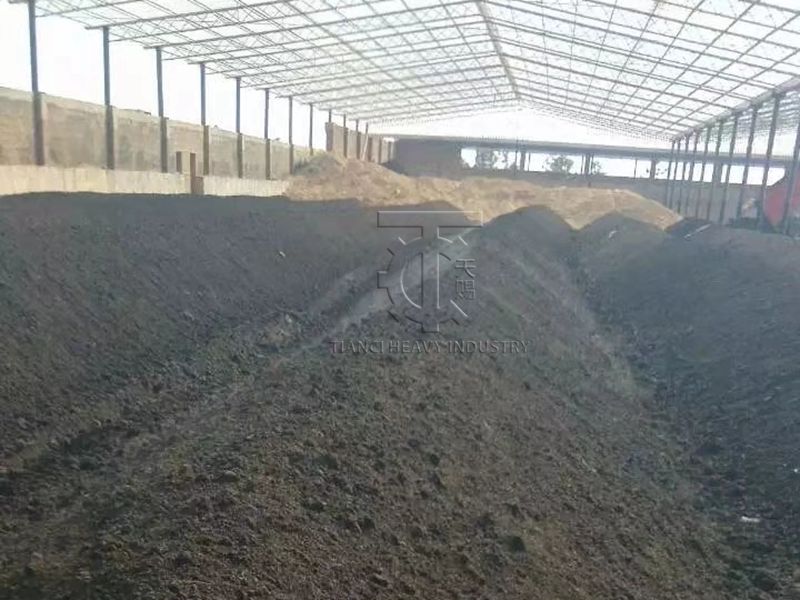

crawler type compost turner2

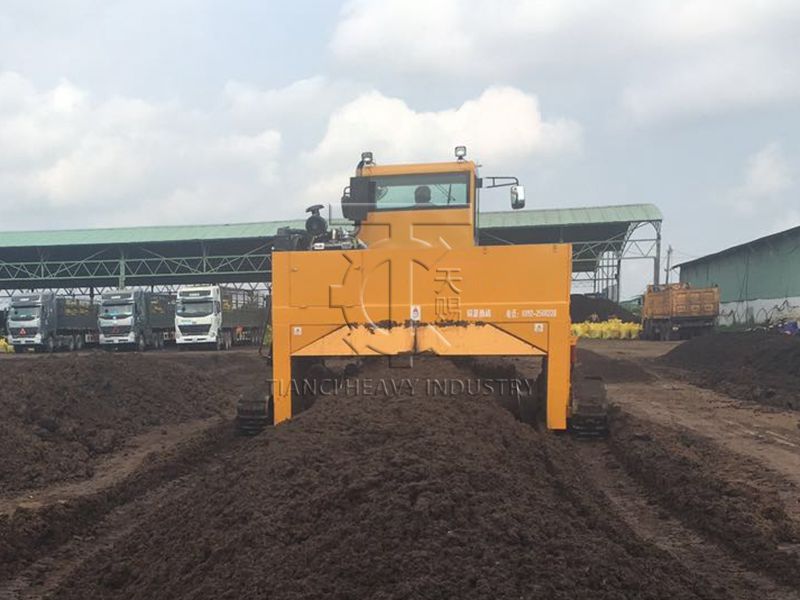

Crawler type compost turner

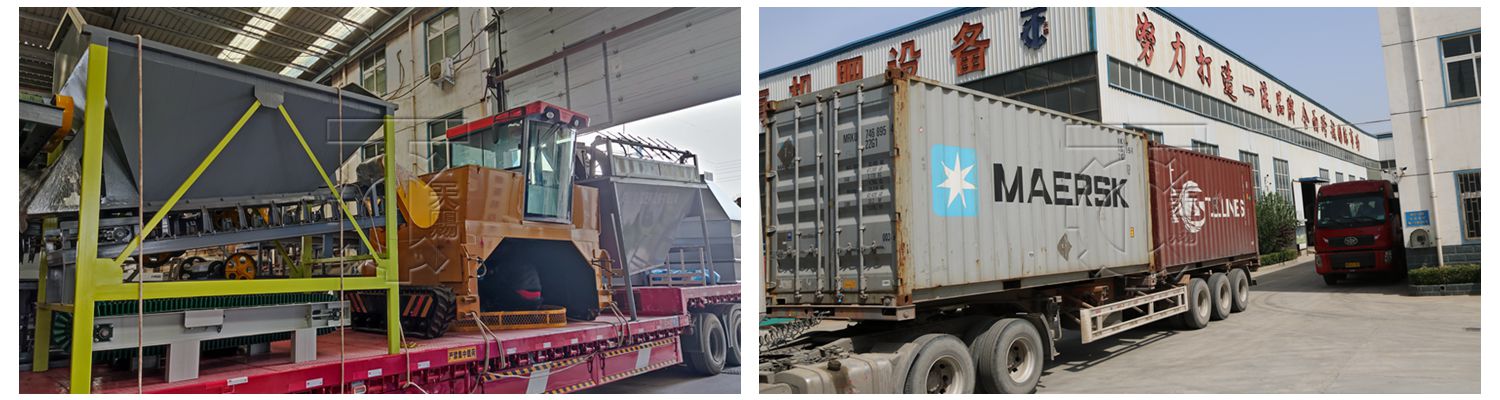

Delivery

Package : wooden package or full 20GP/40HQ container

delivery
