Full granulation function and high production efficiency

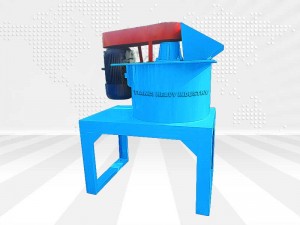

Semi-wet Material Crusher-Crush materials with water content below 65%

  • Use: Crushing of high moisture organic raw materials,Grinding and crushing of high hardness materials
  • Production capacity: 1-20 tph
  • Matching power: 22-55kw
  • Product highlights: High crushing ratio, high wet materials do not paste walls
  • Applicable Materials: It can be used for the final crushing of straw, animal residues and animal excreta,various materials such as mixture, gypsum, coal gangue, slag, copper ore.

Product Detail

Product Tags

Product Description

Semi-wet material pulverizer is a professional pulverizing equipment for professional pulverizing high humidity and multi-fiber materials. The semi-wet material pulverizer uses a high-speed rotating blade to pulverize the fiber with good particle size, high efficiency and high energy. The semi-wet material pulverizer is mostly used in the production and processing of organic fertilizer, and the smashing of chicken manure, humic acid and other raw materials has a good effect.

Performance Characteristics

003-Semi-wet-Material-Crusher

1.The semi-wet material crusher has flexible combination and strong applicability.

2.The semi-wet material crusher does not have any requirement for the moisture content of the material. Without the sieve bottom and the screen mesh, the material with high moisture content can be pulverized, and the viscous material with relatively high viscosity will not be clogged.

3.The semi-wet material crusher uses a high-alloy wear-resistant hammer head. The hammer piece is made of forged, which is particularly strong and wear-resistant. It is stronger than the ordinary hammer and increases the service life of the hammer piece.

4.The semi-wet material crusher adopts the gap-fixing technology. When the hammer head is worn, the position of the hammer head is adjusted to reduce the gap between the hammer and the lining. This will give you a satisfactory graininess.

Working Principle

The semi-wet material pulverizer adopts the two-stage rotors, that means up and down two-stage pulverization. When he raw material passes through the upper-stage rotor pulverizer to form a coarse particles, and then is transported to the lower-stage rotor to continue pulverization into fine powder to reach the best particle sizes for the next granulating device. There is no sieve mesh at bottom of the semi-wet material pulverizer. wet materials can be crushed and never blocked. Even materials that have just been taken from the water can be crushed, and no worry about clogged or blocked.

Main Technical Parameters

Model

Power

(kw)

Capacity

(t/h)

Crushing Granularity

(mesh)

Inlet Size

(mm)

Dimensions

(mm)

TDSF-40

22

1-1.5

50

400*240

1200*1350*900

TDSF-40Ⅱ

22*2

1-1.5

80

400*240

1250*1600*1300

TDSF-60

30

1.5-3

50

500*300

1300*1450*1300

TDSF-60Ⅱ

30*2

1.5-3

80

500*300

1500*2150*1920

TDSF-90

37

3-5

50

550*410

1800*1550*1700

TDSF-120

75

5-8

50

650*500

2100*2600*2130

006-Semi-wet-Material-Crusher
005-Semi-wet-Material-Crusher

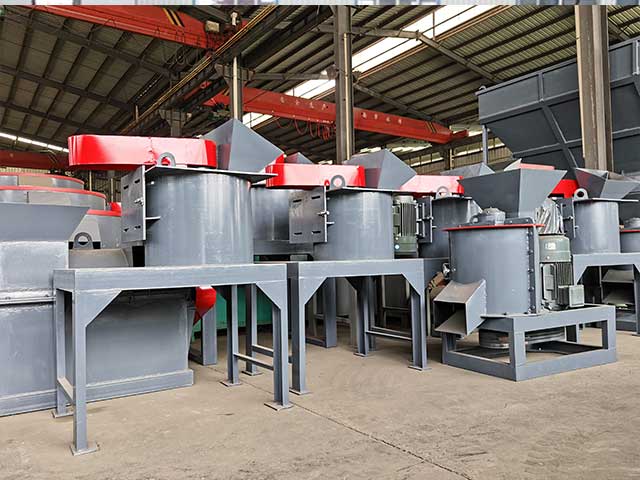

004-Semi-wet-Material-Crusher
  • Request a Quote

    1

    Select model and place orders

    Select the model and submit the purchase intention

    2

    Get the base price

    Manufacturers take the initiative to contact and inform the lo

    3

    Plant inspection

    Expert training guide, regular return visit

    4

    Sign the contract

    Select the model and submit the purchase intention

    Get the minimum offer free of charge , please fill in the following information to tell us ( confidential information , not open to the public )

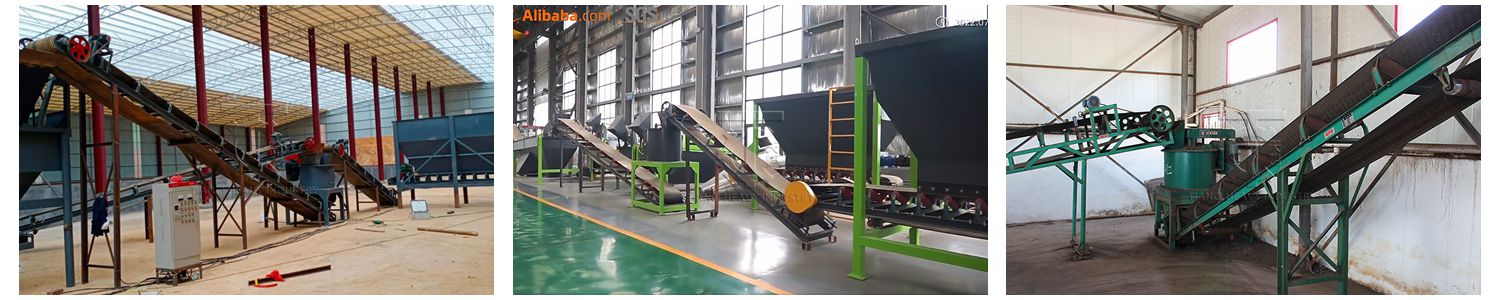

    Project Case
