Full granulation function and high production efficiency

Compost Organic Manure Fermentation Tank

  • Usage: Compost fermentation for organic fertilizer manure
  • Production capacity: 1-10 tph
  • Matching power: ≥7.5kw
  • Product highlights: High fermentation efficiency and short fermentation cycle
  • Applicable materials: Cattle manure, chicken manure, poultry manure, grass ash, lignite, straw, bean cakes, corn straw etc.
  • Fermentation maturity stage4-6 hours

Product Detail

Product Tags

Product Despriction

The organic fertilizer fermentation tank is of great significance for the production of organic fertilizers. Mainly suitable for chicken manure, pig manure, cow manure, sheep manure, human manure, medicine residue, edible mushroom residue, urban sludge, humic acid, straw powder, sugar factory filter mud, organic matter in household waste, etc.

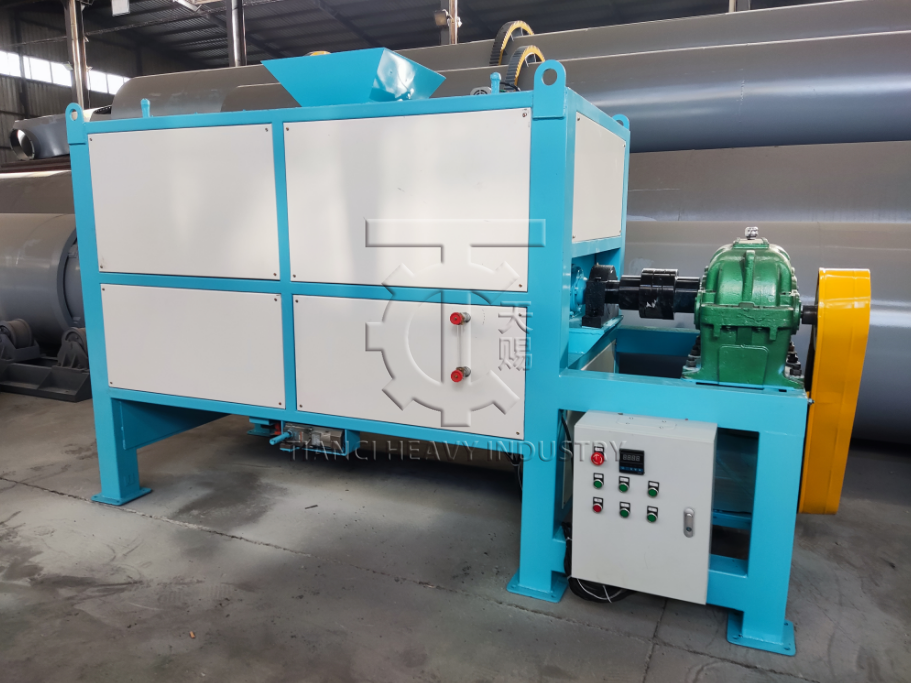

fermentation tank
fermentation tank

1. Feeding system

2. Tank fermentation system

3. Power mixing system

4. Discharging system

5. Heating and insulation system

6. Maintenance part

7. Fully automated electrical control system

Performance Characteristics

1. There is no need to build a production workshop and the floor area is small.

2. The fermentation process is sealed in the tank body and will not pollute the air.

3. The fermentation process is heated by external circulation, which can completely kill harmful bacteria and insect eggs.

4. The barrel of the fermentation tank is made of corrosion-resistant steel, which effectively extends the service life.

5. The internal heat transfer oil of the equipment adopts imported high-temperature heat transfer oil as the constant temperature heat value transmission medium, which has obvious advantages of high boiling point, stable heat transfer performance, high heat exchange efficiency, good heat transfer effect and high heat utilization rate.

Parameters

Model

15m³

20m³

HeatingPower(kw)

30

30

String Power(kw)

22

37

Reducer Model

ZQ850

ZQ850

Speed(r/min)

3.4

6

Dimensions(mm)

6000*2600*2800

7400*2820*3260

fermentation tank

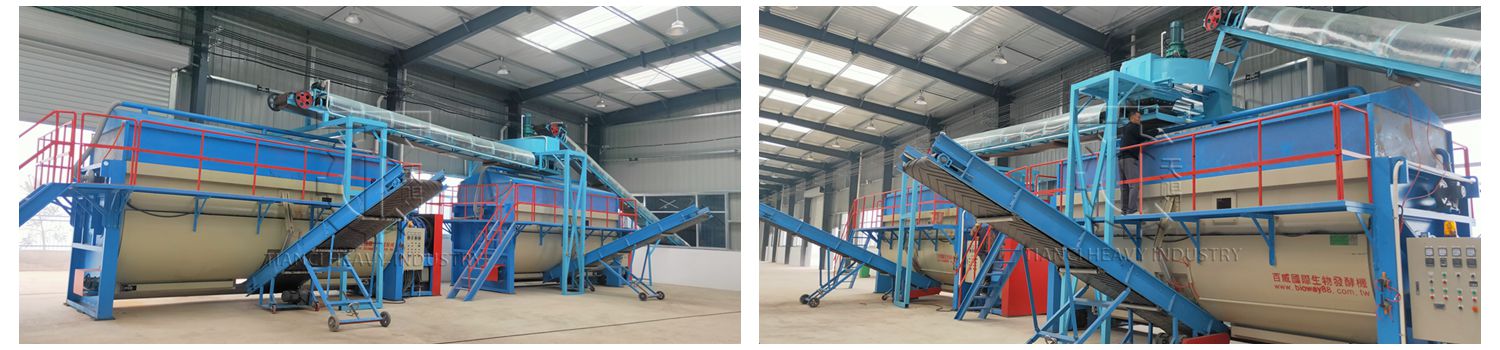

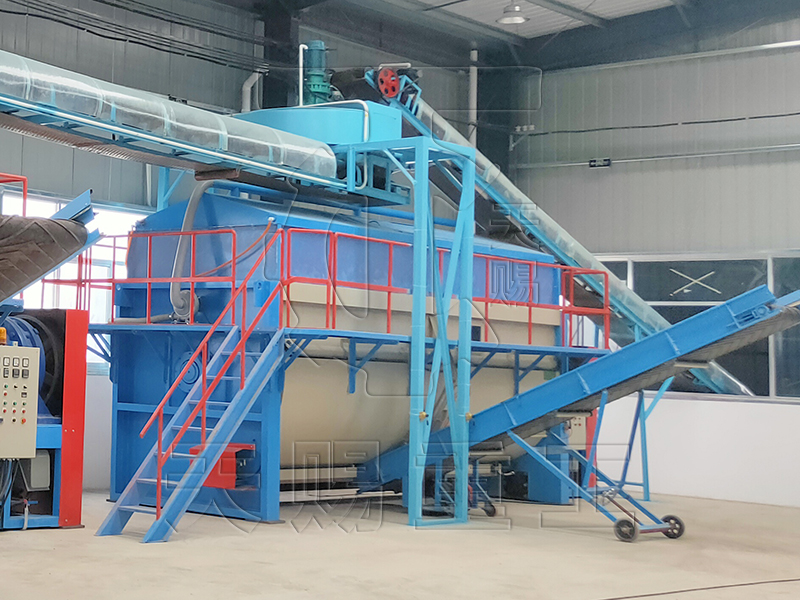

Working Project

fermentation tank

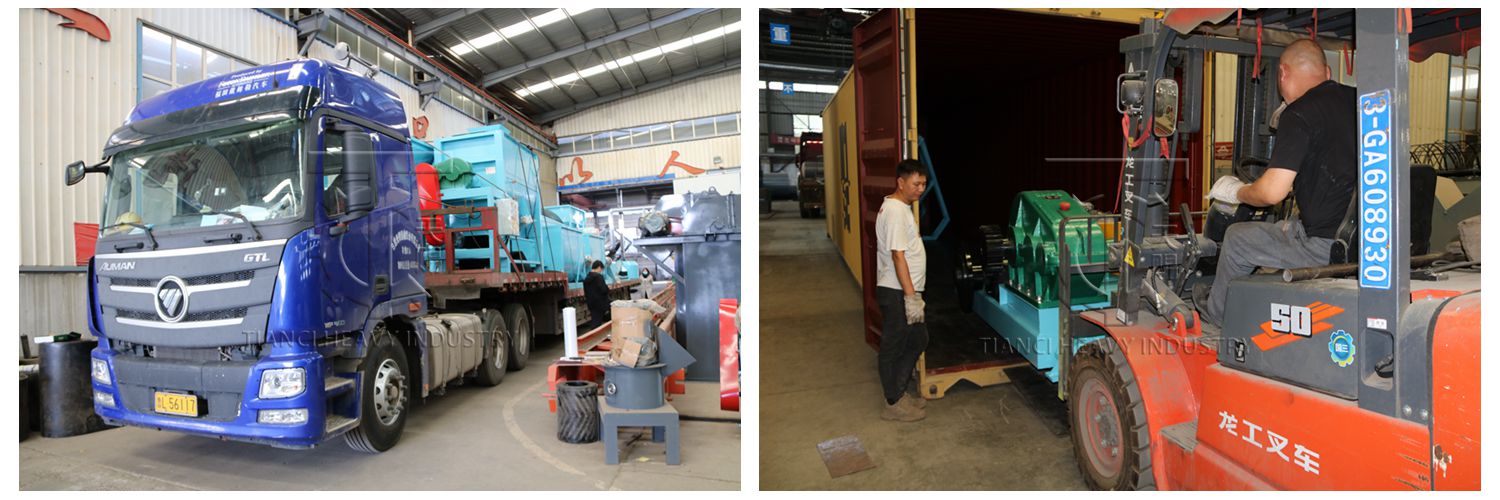

Delivery

Package : wooden package or full 20GP/40HQ container
