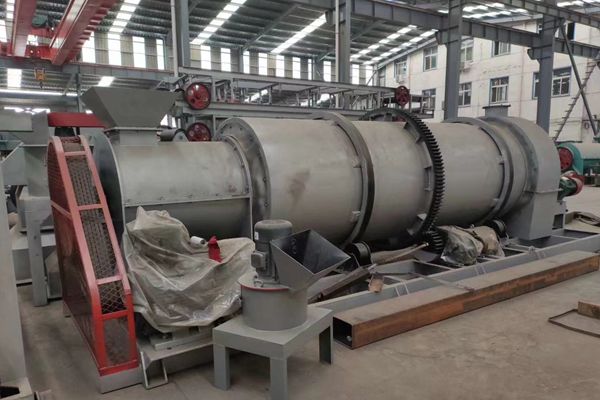

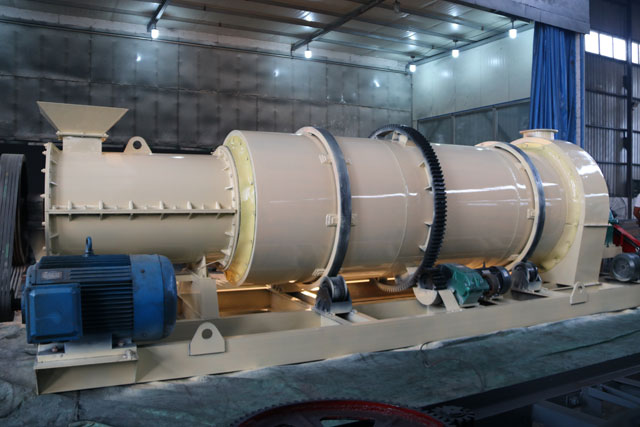

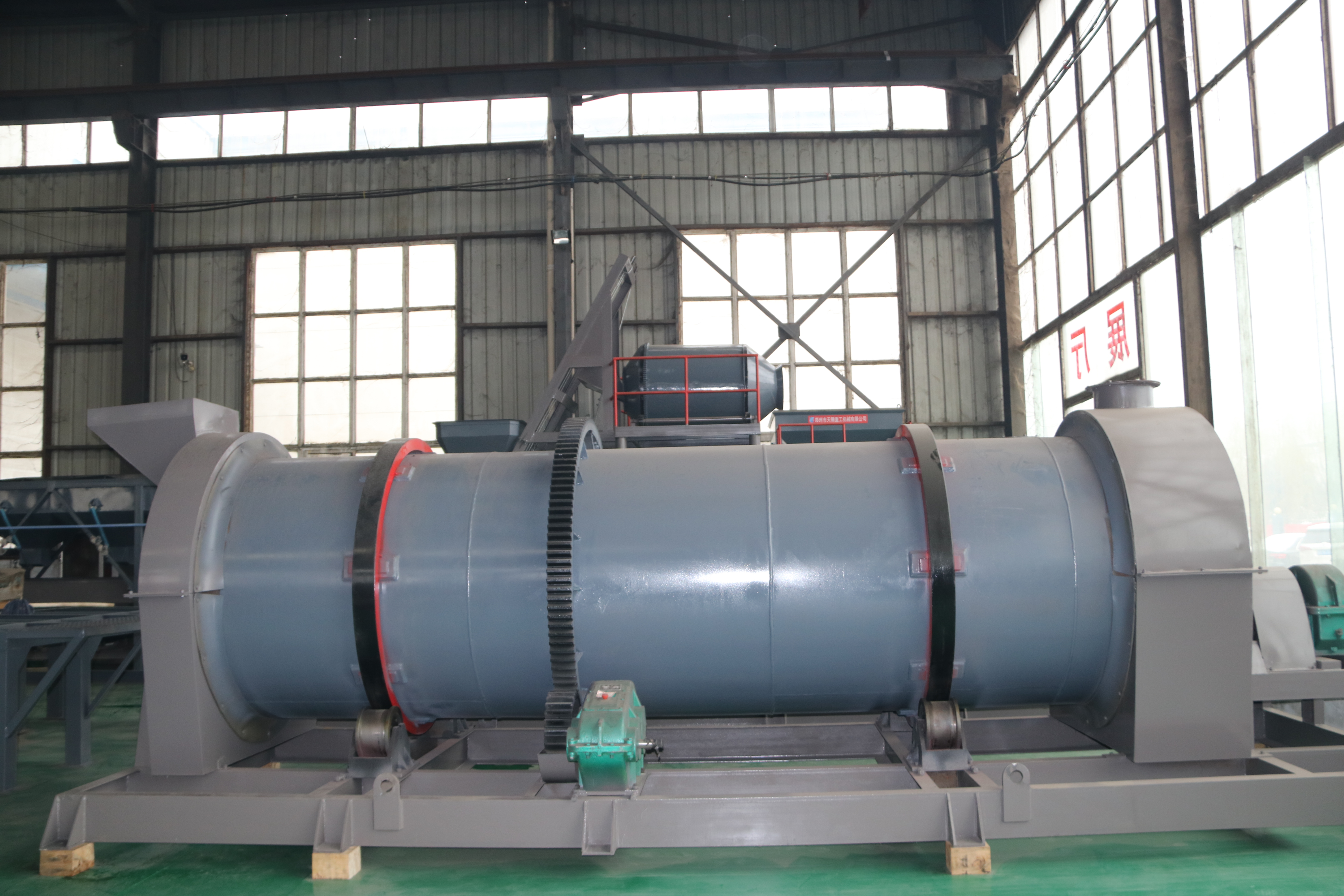

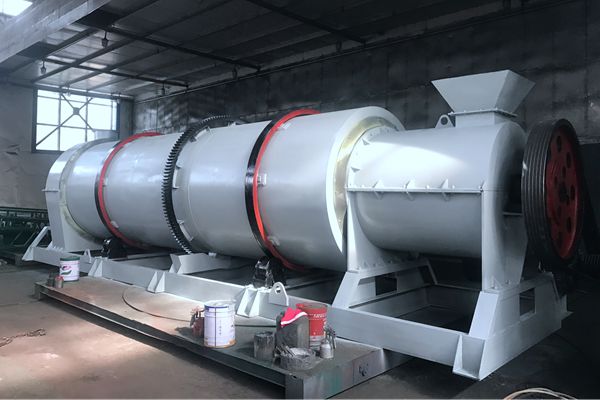

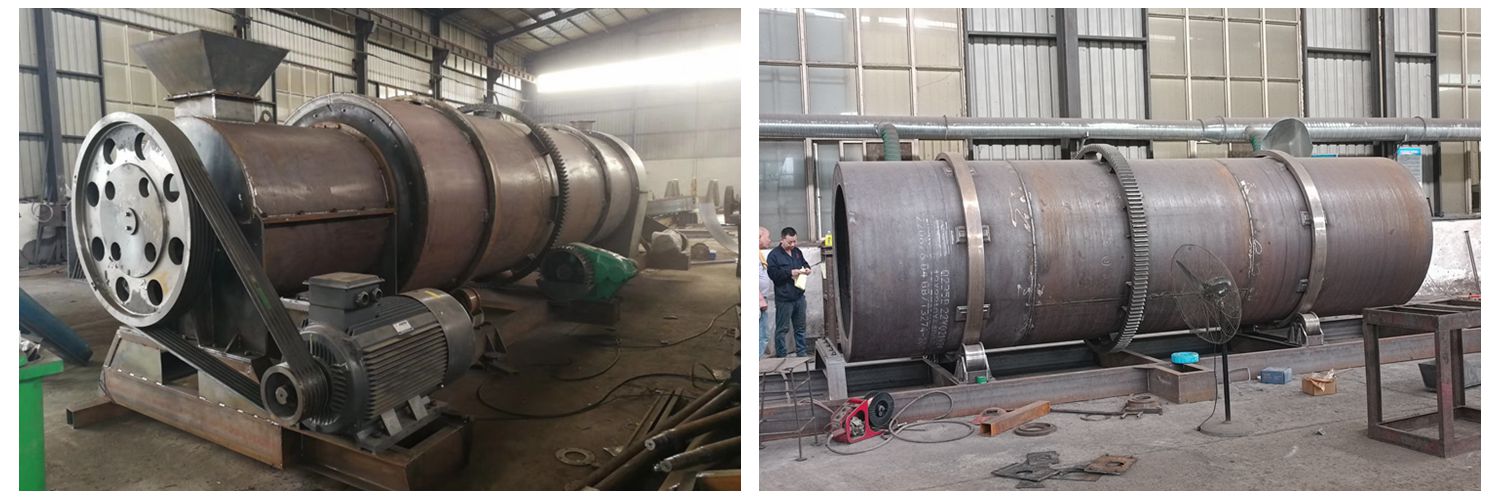

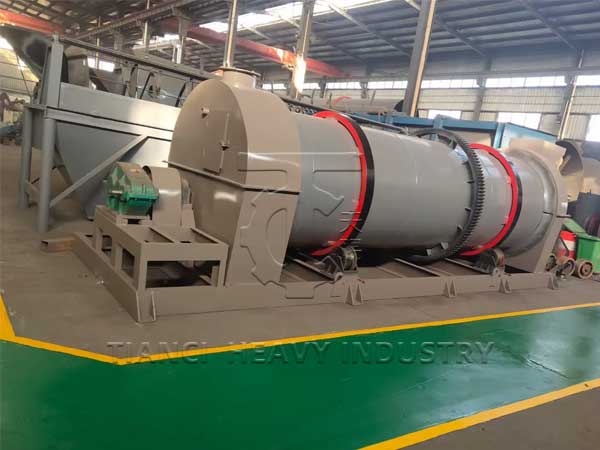

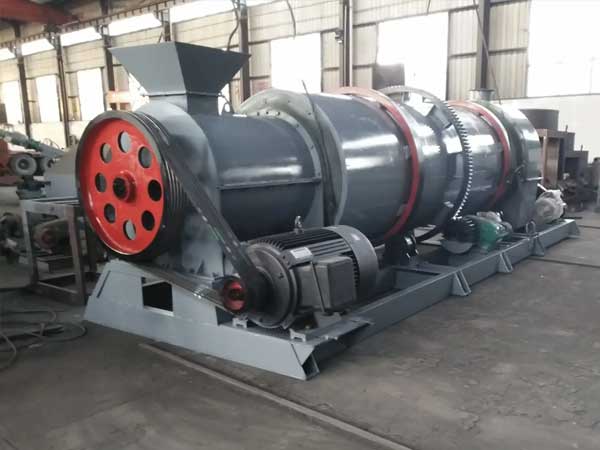

Organic Compound Fertilizer Granulator

Usage: Production of organic compound fertilizer granules

Production Capacity: 2-20t/h

Raw Materials: Multiple compound fertilizer powder or compost organic manure

Granule Size: 1-10t/h

Granule Shape: Ball type

Get quotation

+8613203835178

Product Detail

Product Tags

Product Despriction

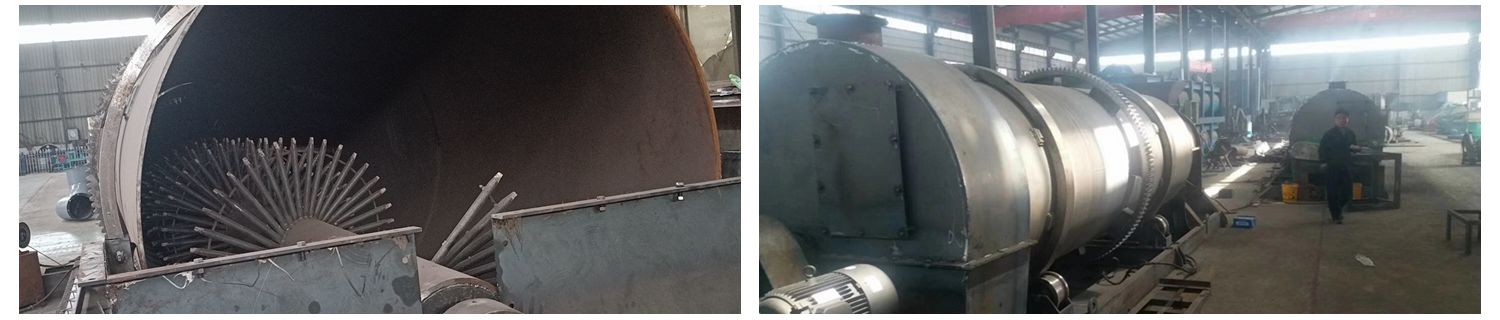

This machine is a multi-purpose wet granulation equipment newly developed on the basis of the original developed and produced granulator. Because the method of internal stirring teeth and external rotating cylinder is adopted in the second stage granulation section, it not only meets the quality requirements of granulation, but also solves the problem of some materials sticking to the wall due to excessive viscosity and humidity. The combination of these two granulation methods makes the granules with higher pellet formation rate, more beautiful appearance, energy saving and energy saving.

Applications and Features

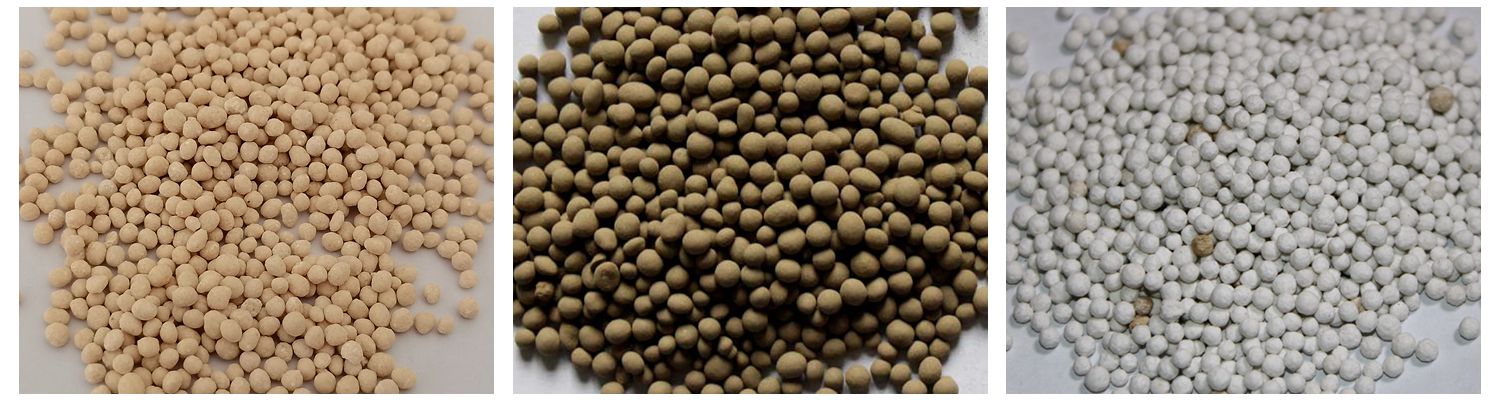

The product particles produced by the organic fertilizer and inorganic fertilizer combined granulator is round ball.

The organic content can be high to 100%, make pure organic granulate.

Organic material particles can grow up under a certain force, no need to add binder when granulating.

Product granule is massy, it can sieve directly after granulation to reduce the drying energy consumption.

After fermentation organics don't need to dry, moisture of the raw material can be in 20%-40%.

It is used for granulation for all kinds of organic matter after fermentation, crushing through the conventional organic prilling before granulating need not to dry nd crush the raw materials. It can direct burdening to work out ball granules, can save a lot of energy.

Main Technical Parameters

Model	Prod Capacity	Power (Kw)
YSL2~60/120	2~4t/h	42.6
YSL2~80/120	3~5 t/h	58.2
YSL2~80/150	5~8 t/h	60.5
YSL2~100/150	6~10 t/h	72.5
YSL2~120/180	10~15 t/h	93
YSL2~120/220	12~20 t/h	117
