Full granulation function and high production efficiency

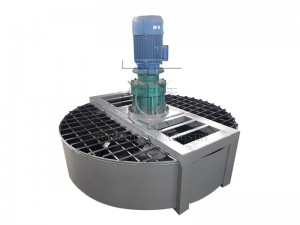

Fertilizer Vertical Disc Mixing Machine

  • Usage: Mixing of organic compound fertilizer materials
  • Production Capacity: 3-16t/h
  • Power: 5.5-15 kw
  • Product highlights: High mixing efficiency and less occupied area
  • Applicable Materials: Compound fertilizer powder or organic compost manure

Product Detail

Product Tags

Product Despriction

This machine is mainly used for mixing raw materials. The inside of the tray is lined with polypropylene plate or stainless steel plate, so it is not easy to stick to the material. The mixer has long service life, energy saving, small size, fast mixing speed, and can work continuously. It is especially suitable for mixing fertilizer raw materials and extensive urban and rural construction projects.

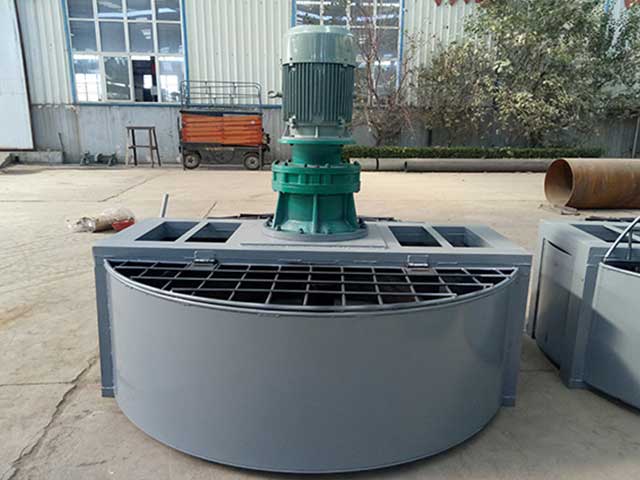

Vertical Mixer (3)

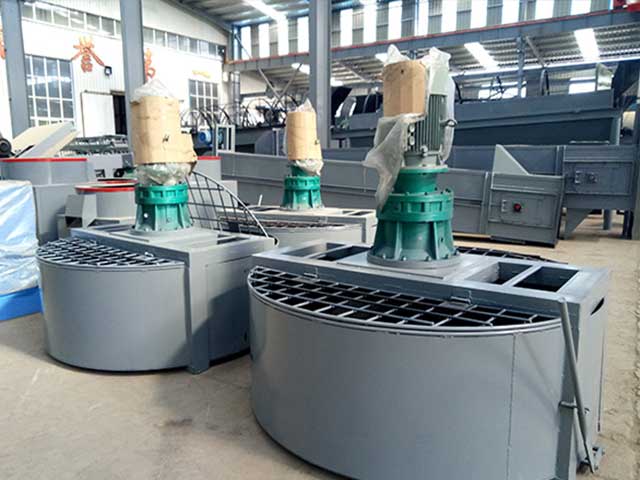

Vertical Mixer (2)

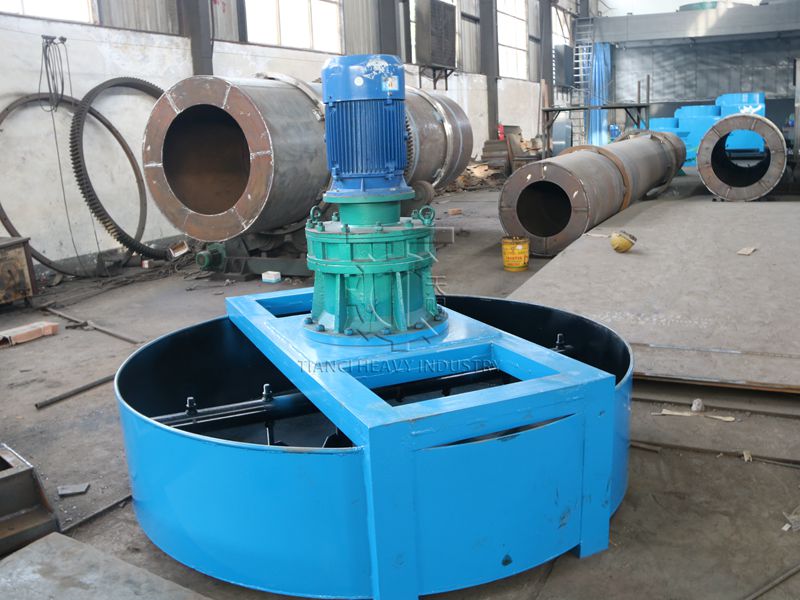

disc mixer

Main Technical Parameters

Model

Mixer

Rotate Speed

(r/min)

Power

(kw)

Prod Capacity

(t/h)

Overall dimensions

LWH)(mm)

Quality

(Kg)

Diameter

(mm)

Wall Height

(mm)

PJ1600

1600

400

12

5.5

3-5

1612×1612×1368

1200

PJ1800

1800

400

10.5

7.5

4-6

1900×1812×1368

1400

PJ2200

2200

500

10.5

11

6-10

2300×2216×1503

1668

PJ2500

2500

550

9

15

10-16

2600×2516×1653

2050

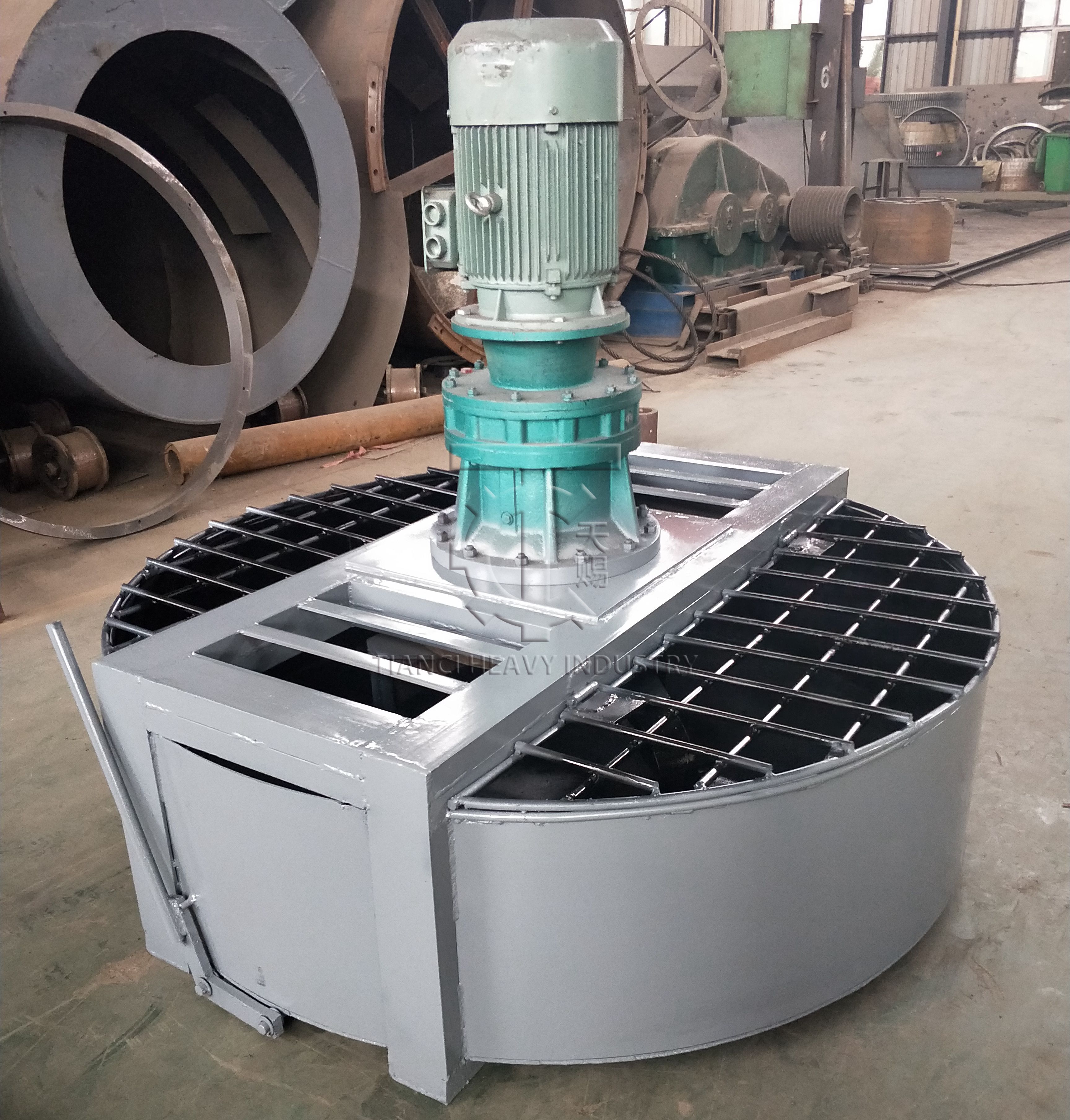

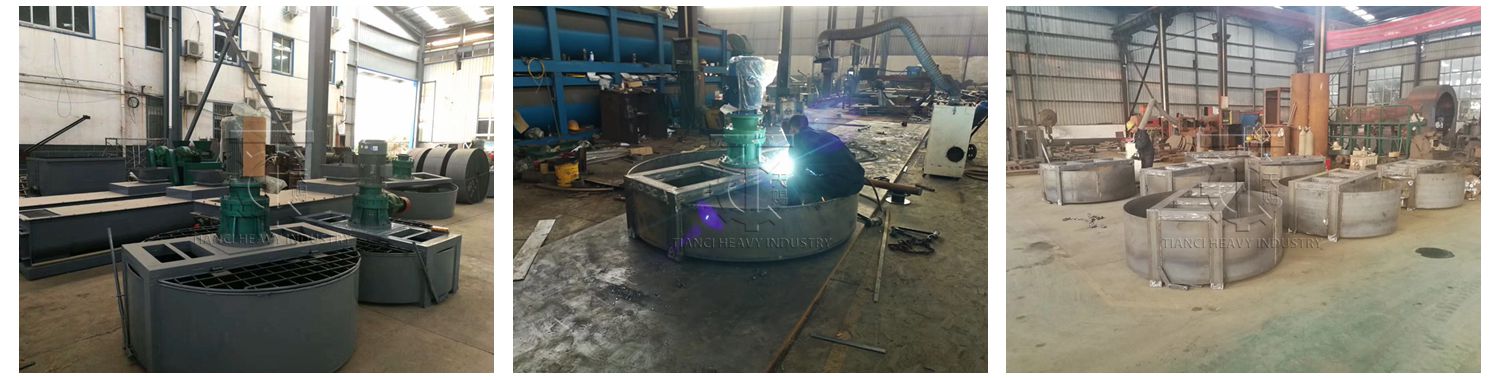

disc mixer1

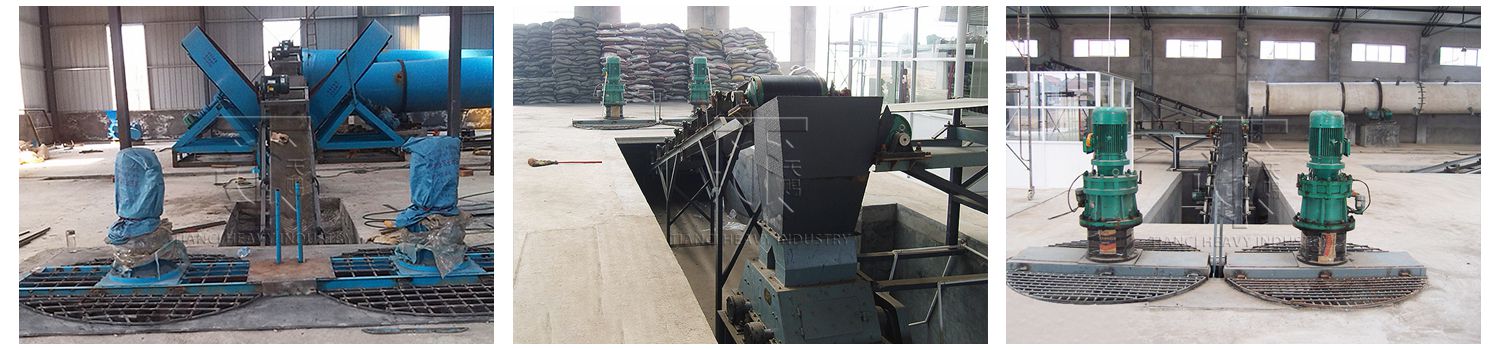

Working Project

working project

Delivery

Package : wooden package or full 20GP/40HQ container
