Full granulation function and high production efficiency

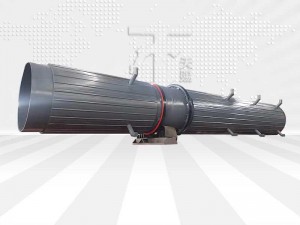

Vibrating dryer-Heat preservation dryer

  • Use: Drying of organic fertilizer and compound fertilizer
  • Production Capacity: 1-20t/h
  • Matching Power: 7.5kw-45kw
  • Rotary speed: 3-6 r/min
  • Product highlights: With vibrating device, the material will not adhere to the cylinder wall, and the drying efficiency is high

Product Detail

Product Tags

Product Description

Rotary dryer is one of the traditional drying equipments. It has reliable operation, large operation flexibility, strong adaptability and large processing capacity. It is widely used in metallurgy, building materials, chemical industry, coal washing, fertilizer, ore, sand, clay, kaolin, sugar, etc. Field, diameter: Φ1000mm-Φ4000mm, the length is determined according to the drying requirements.In the center of the tumble dryer, the breaking mechanism can be avoided, and the wet material entering the drying cylinder is repeatedly picked up and thrown by the copy board on the wall of the rotating cylinder, and is broken into fine particles by the dispersing device during the falling process. The specific area is greatly increased, and it is in full contact with the hot air and dried.

Performance Characteristics

The material will not adhere to the inner wall

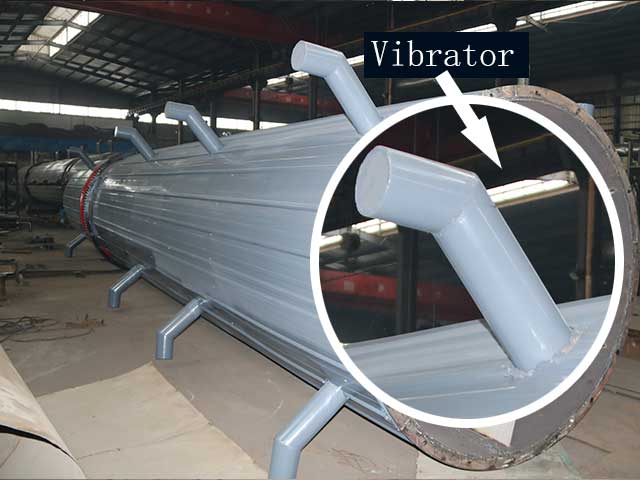

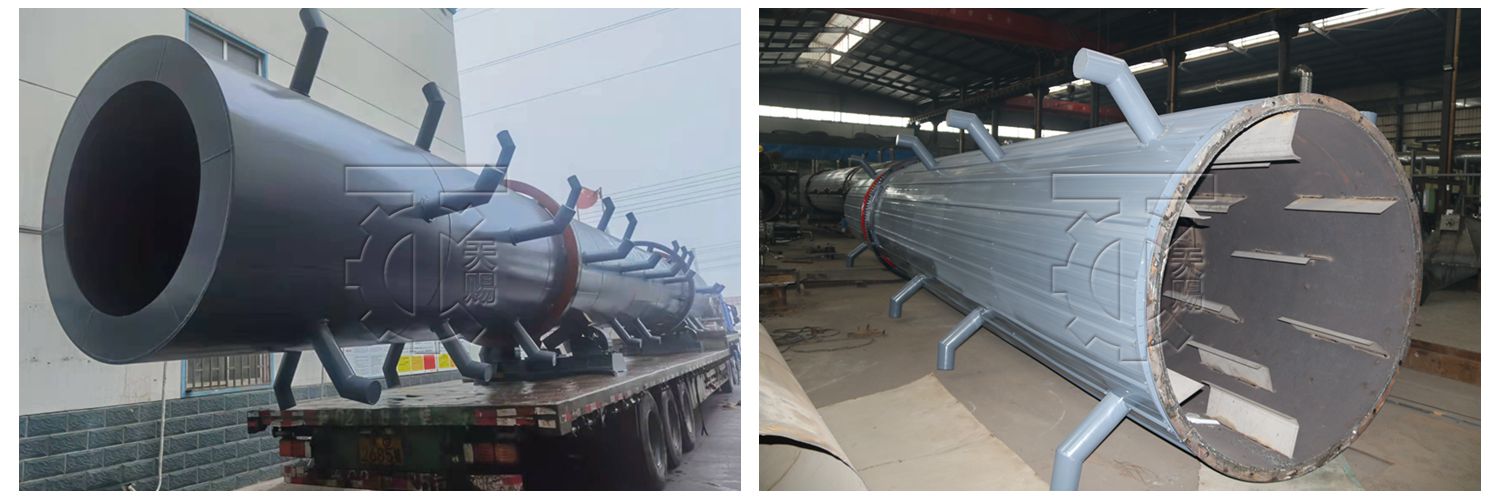

On the main cylinder of the vibration dryer, there are several groups of small cylindrical cylinders in the shape of '7'. During the rotation of the cylinder with the dryer, the cylinder vibrates and knocks the cylinder, causing the cylinder to vibrate. Therefore, the materials bonded on the inner wall of the drying cylinder can be separated from the inner wall of the cylinder with the vibration of the cylinder, so the purpose of non bonding the dryer cylinder is realized.

High efficiency in heatin

The distribution and angle of the lifting plate of the rotary dryer are reasonable and the performance is reliable, so the heat energy utilization rate is high and the drying is uniform.

Lower energy consumption

The rotary dryer has a large processing capacity, low fuel consumption, and low drying cost.

Reduces wear

The rotary dryer equipment adopts a self-aligning tug structure, and the tug and the rolling ring cooperate well, which greatly reduces wear and power consumption.

The dryer has the characteristics of high temperature resistance and can quickly dry materials with high temperature hot air. The scalability is strong and the design takes into account the production margin.

Working Principle

The rotary dryer is mainly composed of a rotating body, a lifting plate, a transmission device, a supporting device and a sealing ring. The dried wet material is sent to the hopper by a belt conveyor or a bucket elevator, and then fed through the hopper through the feeding pipe into the feed end. The slope of the feeding pipe is greater than the natural inclination of the material so that the material flows smoothly into the dryer. The dryer cylinder is a rotating cylinder that is slightly inclined to the horizontal. The material is added from the higher end, the heat carrier enters from the lower end, and is in countercurrent contact with the material, and the heat carrier and the material are simultaneously flowed into the cylinder. As the rotating material of the cylinder is moved by gravity to the lower end. During the forward movement of the wet material in the cylinder body, the heat supply of the heat carrier is directly or indirectly obtained, so that the wet material is dried, and then sent out at the discharge end through a belt conveyor or a screw conveyor.

Main Technical Parameters

Model

Shell

Prod capacity

Inlet temp ofhot air

Outlet temp ofhot air

Motor

Decelevators model

Inner diam

length

inclination

Rotation speed

Model

Power

Rotation Speed

mm

mm

0

r/min

t/h

°C

°C

ZG12120

1200

12000

2-5

4.7

2-2.5

150-250

60-80

Y160M-4

7.5

1460

ZQ350

ZG15120

1500

12000

2-5

5.0

4-6

150-250

60-80

Y160L-4

15

1440

ZQ400

ZG15150

1500

15000

2-5

5.0

5-7

150-250

60-80

Y160L-4

15

1440

ZQ500

ZG18150

1800

15000

2-5

3.9

7-10

150-250

60-80

Y200L1-6

18.5

970

ZQ500

ZG20200

2000

20000

2-5

3.9

8-14

150-250

60-80

Y200L2-6

22

970

ZQ650

ZG22220

2200

22000

2-5

3.2

12-16

150-250

60-80

Y250M-6

37

980

ZQ750

ZG24240

2200

24000

2-5

3.0

14-19

150-250

60-80

Y280S-6

45

970

ZQ850

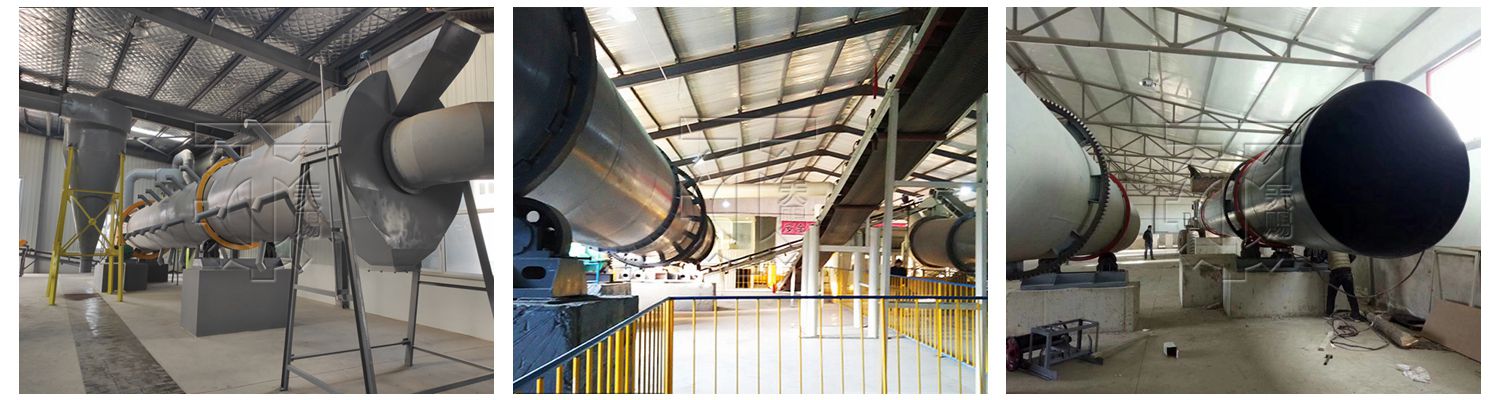

rotary drum dryer (1)
rotary-drum-dryer-(3)
rotary-drum-dryer-(2)
