Full granulation function and high production efficiency

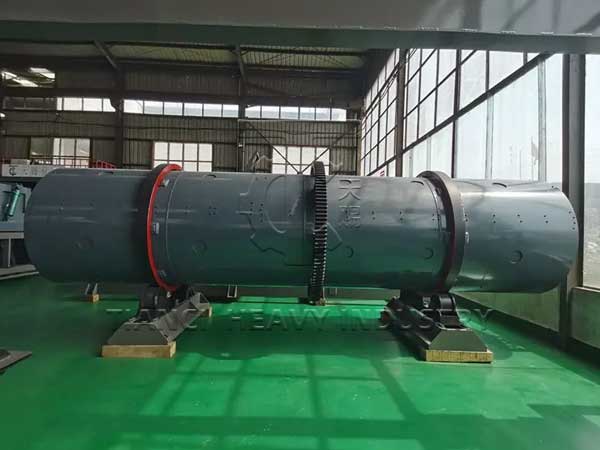

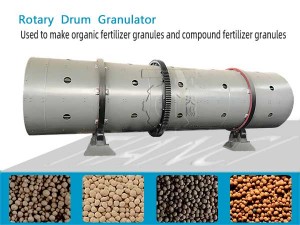

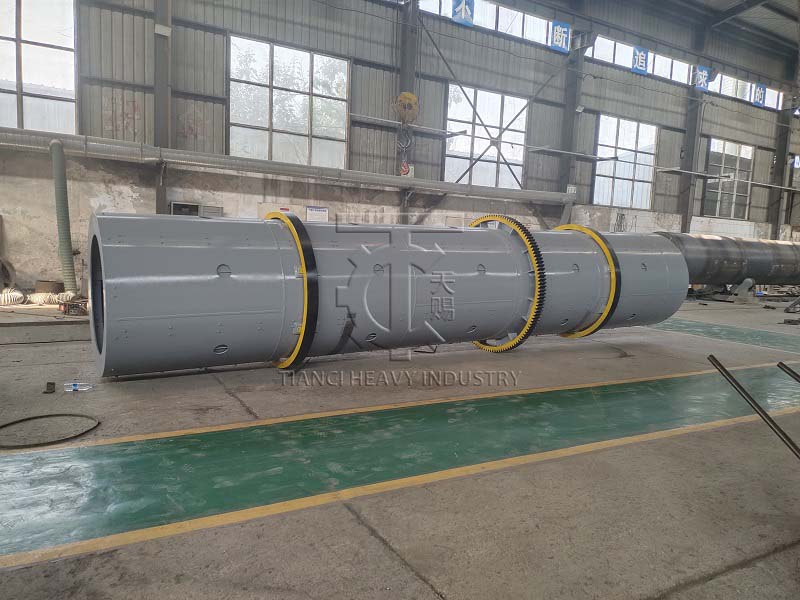

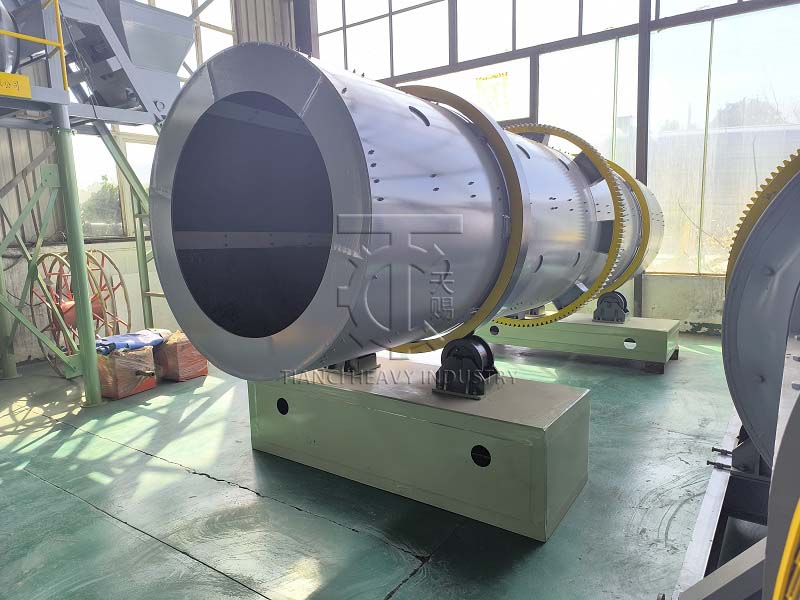

Fertilizer Rotary Drum Granulator

  • Used for processing NPK fertilizer granules, composite fertilizer granules, mineral powder granules

  • Production Capacity: 1-20t/h
  • Raw Materials: Mineral powder,NPK powder ,organic manure,Compound fertilizer

Product Detail

Product Tags

Product Description

The rotary drum granulator is suitable for large-scale production of hot and cold granulation and high、medium and low concentration compound fertilizer.

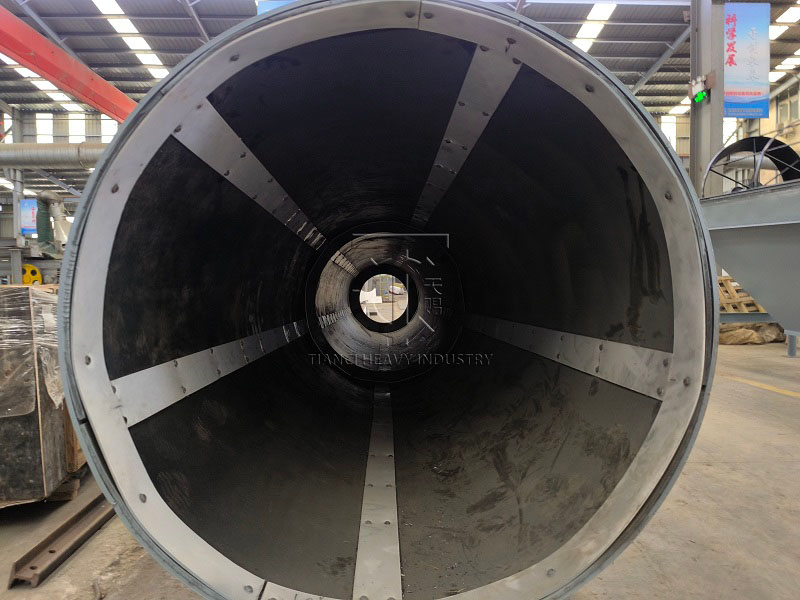

The drum granulator has the characteristics of simple operation, low energy consumption, long life, uniform drying, convenient maintenance, etc. The barrel is lined with a special rubber plate or acid-resistant stainless steel.

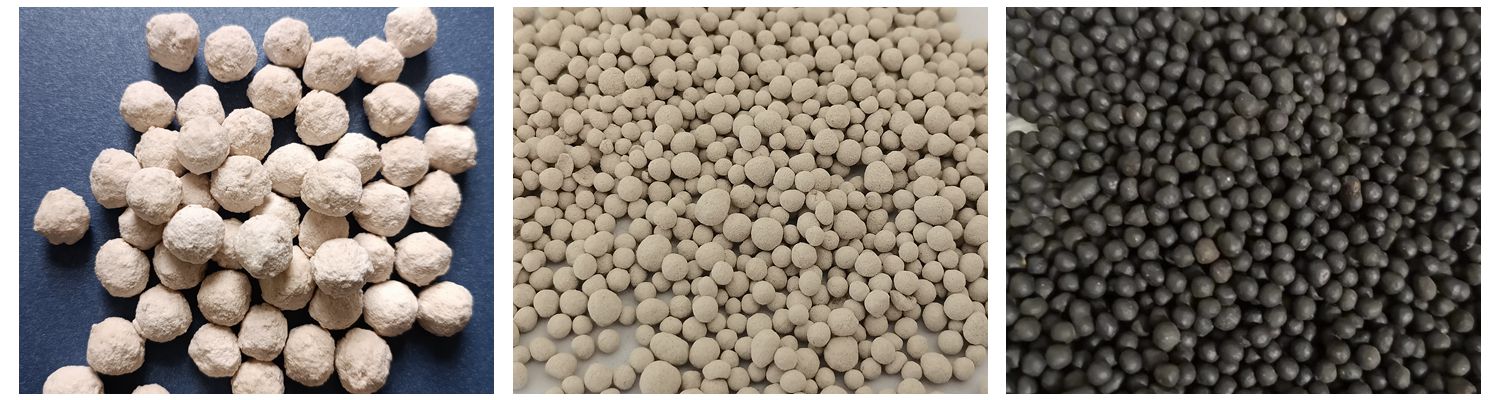

granule
granule

Performance Characteristics

1. Technical innovation and structural improvement, the tube adopts special rubber plate lining or acid-resistant stainless steel lining, which realizes automatic scar removal and tumor removal and eliminates the traditional scraper device.

2. High wear resistance, easy maintenance, high ball strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance.

3. Reasonable layout, leading technology, small power, no waste discharge, stable operation, convenient maintenance, reasonable process layout, advanced technology, low production cost.

4. High pelletizing rate, high drying efficiency, pelletizing rate up to 70%, with a small amount of return material, return material particle size is small, can be re-granulated;Through steam heating, improve the material temperature

Working Principle

The main working principle is wet type granulation: Through a certain amount of water or steam, the basic fertilizer humidifying in the tank and occurring sufficient chemical reaction. Under a certain liquid conditions, with the rotation of the rotary drum movement, so that produce a squeeze force between the material particles and agglomerate into balls.

Main Technical Parameters

Model

Barrel

Power

Prod Capacity

Overall dimensions L× W ×H

weight

Inclination

Internal diameter

length

Rotation speed

0

m

m

r/min

kw

t/h

m

t

ZG1.2×4

2-2.5

1.2

4

17

5.5

1-3

4.6×2.2×2.0

2.7

ZG1.4×5

2-2.5

1.4

5

14

7.5

3-5

4.8×2.8×2.3

8.5

ZG1.6×6

2-2.5

1.6

6

11.5

11

5-8

7.0×3.2×3.1

12.0

ZG1.8×7

2-2.5

1.8

7

11.5

15

8-10

8.3×3.5×3.3

18.5

ZG2.0×8

2-2.5

2.0

8

11

18.5

10-15

9.1×3.6×3.5

22.0

ZG2.2×8

2-2.5

2.2

8

10.5

22

15-20

9.5×4.4×3.9

28.0

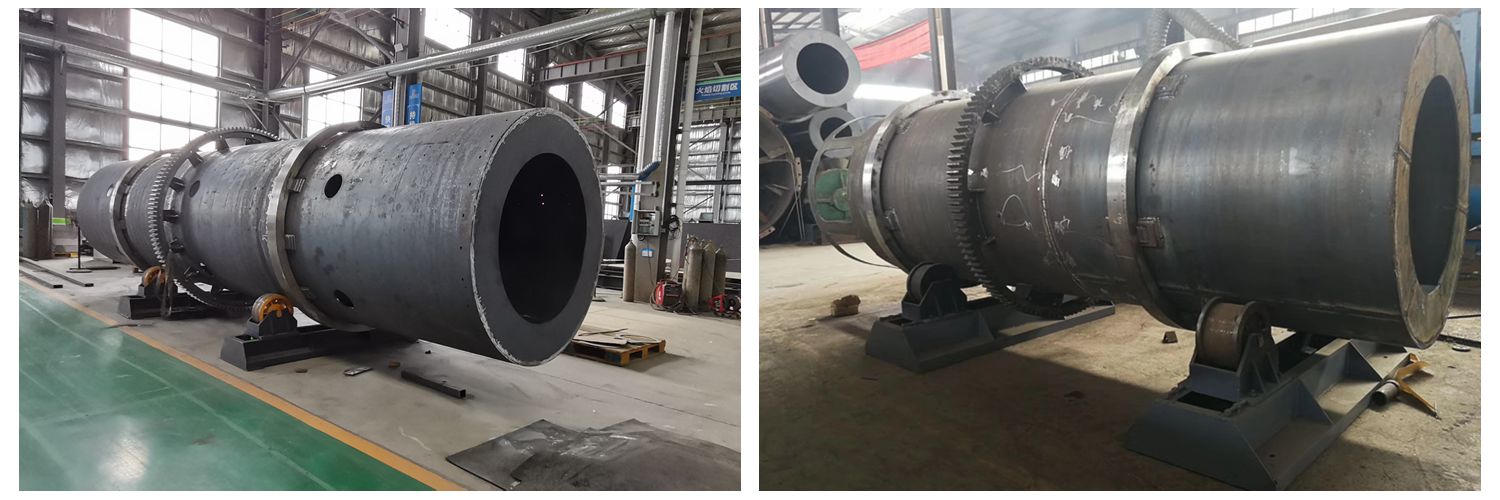

drum granulator

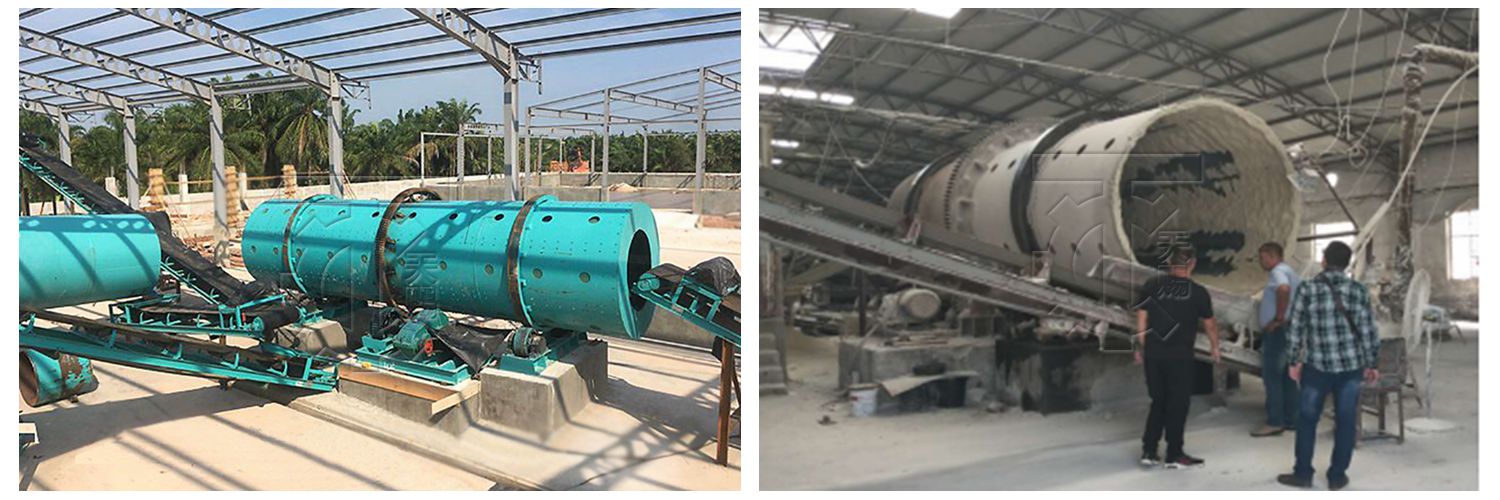

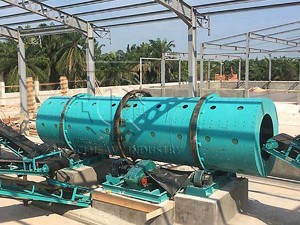

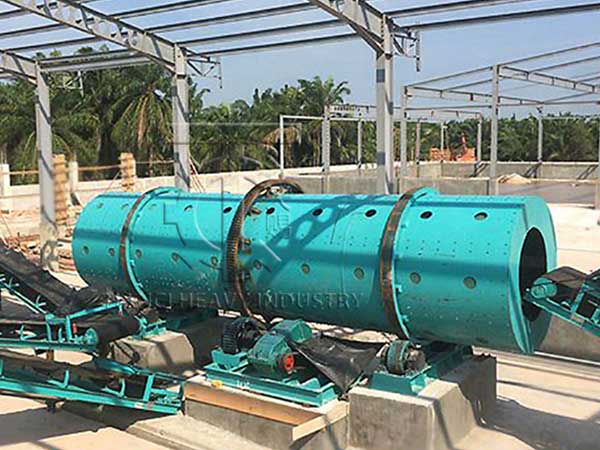

Working Project

working project

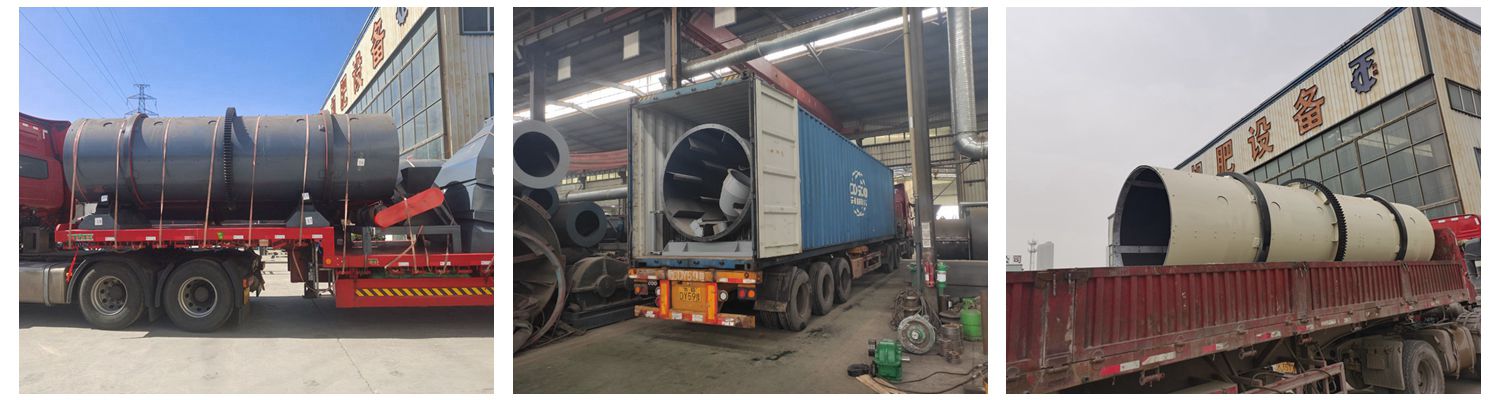

Delivery

Package : wooden package or full 20GP/40HQ container

delivery
