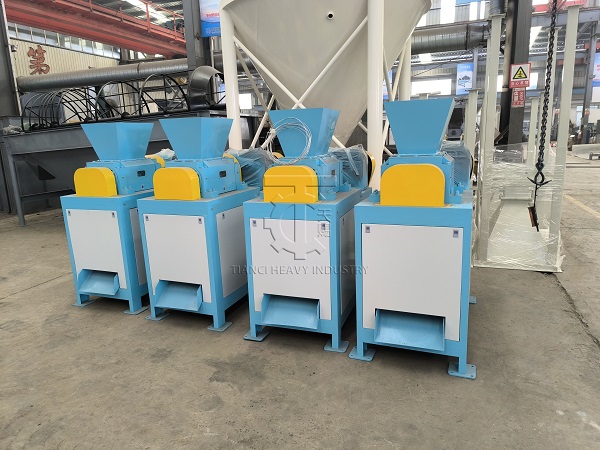

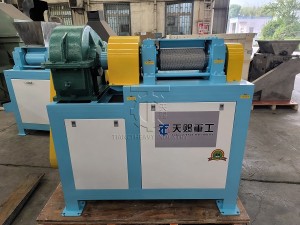

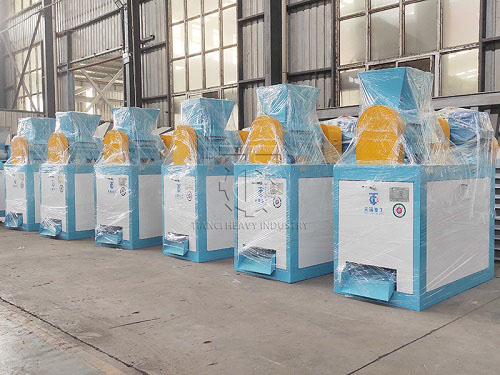

Dry Powder Fertilizer Granulator

Usage: The dry powder fertilizer granulator is a machine that processes powdered raw materials directly into fertilizer granules.

Production capacity: 1~4.5 t/h

Raw materials: Compound fertilizer powder, potassium chloride, potassium sulfate, ammonium chloride, mineral powder, etc.

Granular shape: Flat and round, semicircular, or irregularly shaped

Get quotation

+8618937171932

Product Detail

Product Tags

Product Description

The dry powder fertilizer granulator can directly extrude powdered fertilizer raw materials into granules at room temperature. The double-roller granulator is suitable for granulating a wide range of materials, including compound fertilizers, organic fertilizers, NPK fertilizers, mineral powders, and bentonite. The resulting granules—typically ranging from 2 to 10 mm in size—feature uniform shapes (such as round or oblate) and high structural strength, making them resistant to breakage. Granule size can be adjusted by changing the molds to meet the specific production requirements of different users. Its core adopts a double roller extrusion granulation process. The entire procedure requires no water or additives, and no drying equipment is needed. Offering excellent value for money, featuring low noise levels, a long service life, simple operation and low running costs, this equipment delivers significant economic benefits and is the ideal choice for small, medium and large-scale fertilizer granulation plants.

Product Advantages:

1. No drying required:
Utilizing advanced double-roller extrusion technology, this process directly converts powdered raw materials into granules, completely eliminating the need for the drying and cooling systems required in traditional processes.
2. Preservation of nutrients:
The entire process takes place at room temperature, preventing the degradation of heat-sensitive components, ensuring that nutrients are fully retained and maintaining the stability of the fertilizer’s efficacy.
3. Lower investment costs:
The process features a short workflow, requires minimal floor space, and offers convenient daily operation, enabling “one-stop” automated production from feedstock input to final output.
4. High-performance wear-resistant roll liners:
The roll liners withstand heavy loads and wear, and can handle high-frequency continuous operation without jamming, overheating, or frequent breakdowns.

Working Principle

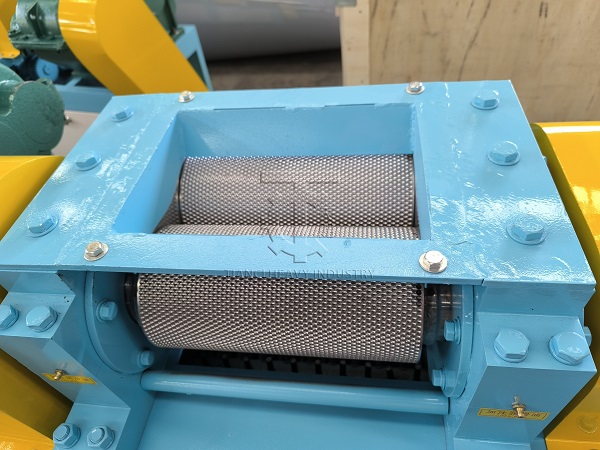

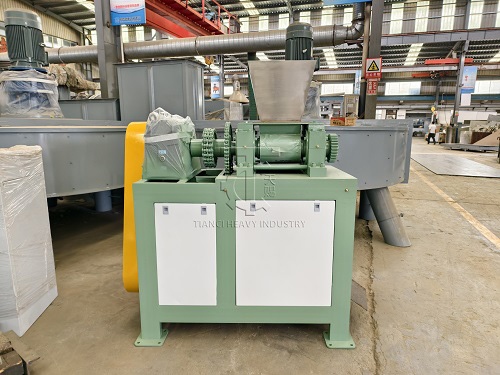

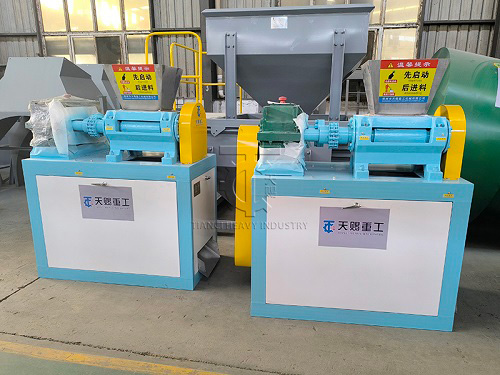

The double roller granulator primarily shapes powdered materials by compressing them between two counter-rotating rollers; the entire process can be divided into three steps: compression, crushing, and discharge.
Compression:
Raw material is fed uniformly between the two rollers via the feeding mechanism. Under intense compressive force, the powder particles are rapidly compacted into dense sheets or blocks.
Crushing:
The compressed material enters the crushing zone, where a crushing mechanism breaks up large chunks into particles of the required size, ensuring greater uniformity in particle size.
Discharge:
Particles that meet the specifications are automatically discharged under the combined action of gravity and the machine’s operation.

Main Technical Parameters

Model	DZJ-Ⅰ-1.0	DZJ-Ⅰ-2.0	DZJ-Ⅰ-3.0	DZJ-Ⅰ-4.0	DZJ-II-1.0	DZJ-II-2.0	DZJ-II-3.0
Production capacity (t/h)	1-1.5	1.5-2.5	2.5-3.5	3.5-4.5	1-2	1.5-2.5	2.5-3.5
Power	15kw	18.5kw	22kw	45kw	15kw	18.5kw	22kw
Pressure roller size	Φ150×220	Φ150×300	Φ186×300	Φ300×300	Φ150×220	Φ150×300	Φ186×300
Feeding size	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm
Finished product specifications	Φ2.5-φ10	Φ2.5-φ10	Φ2.5-φ20	Φ2.5-φ30	Φ2.5-φ10	Φ2.5-φ20	Φ2.5-φ20
Reducer type	ZQH350	ZQH400	ZQH400	ZQH500	special-purpose	special-purpose	special-purpose

Working Video

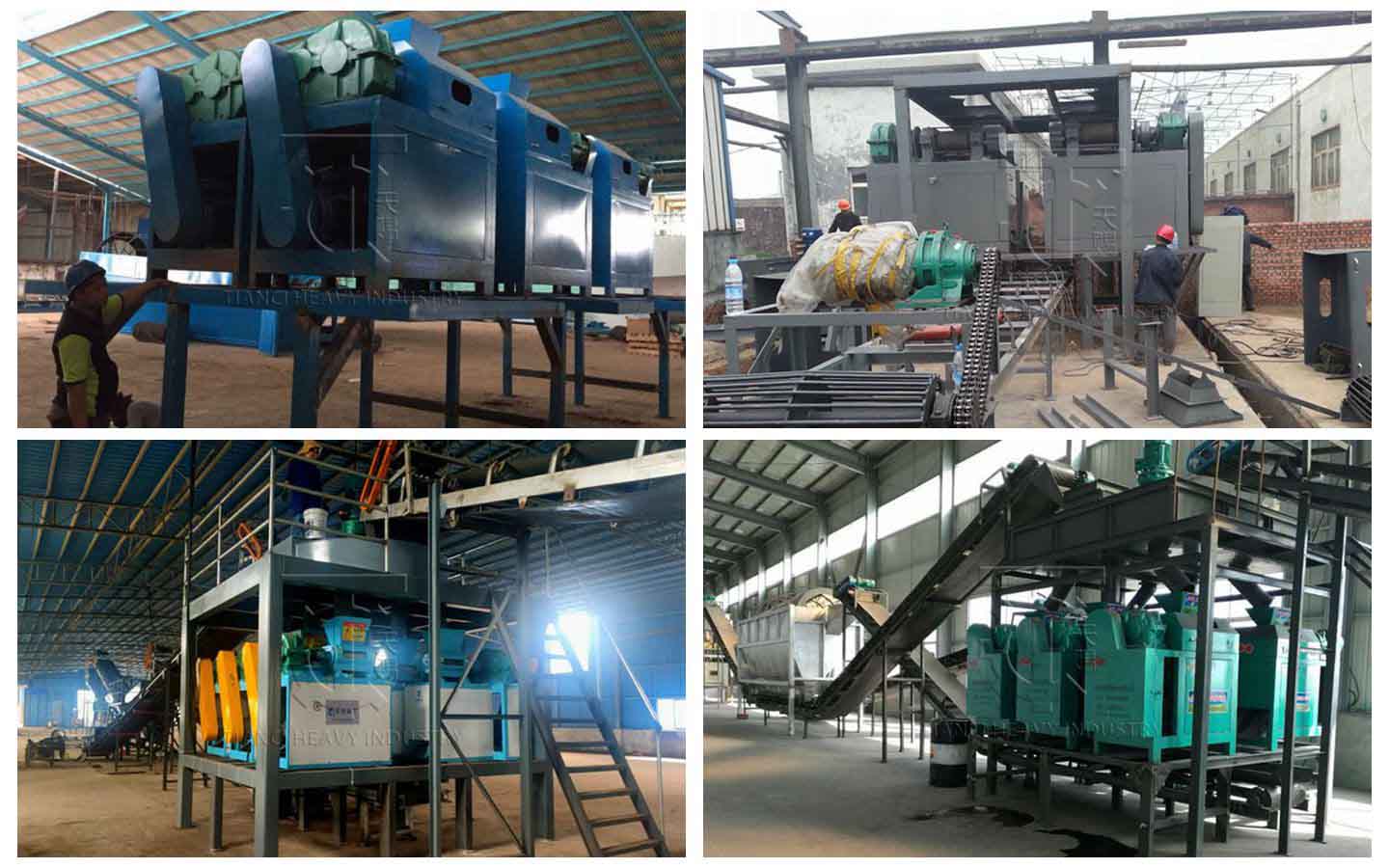

Working Project

With over two decades of deep industry expertise, Tianci Heavy Industry has successfully completed more than 500 fertilizer production projects for clients in over 50 countries and regions worldwide, covering a wide range of applications including organic fertilizer, compound fertilizer, and mineral powder granulation. From twin-roll extrusion granulation lines to complete, automated fertilizer production systems, we have accumulated extensive experience in project design and implementation. Whether you plan to build a small-scale production line with a capacity of 1 ton per hour or a large-scale plant exceeding 20 tons per hour, our engineering team can provide a free, customized process solution, equipment configuration, and plant layout design tailored to your raw material characteristics, target capacity, site conditions, and investment budget. Through scientific planning and optimal configuration, we help you reduce investment costs, improve production efficiency, and ensure rapid project implementation—enabling you to achieve a more stable, efficient, and competitive fertilizer production solution.

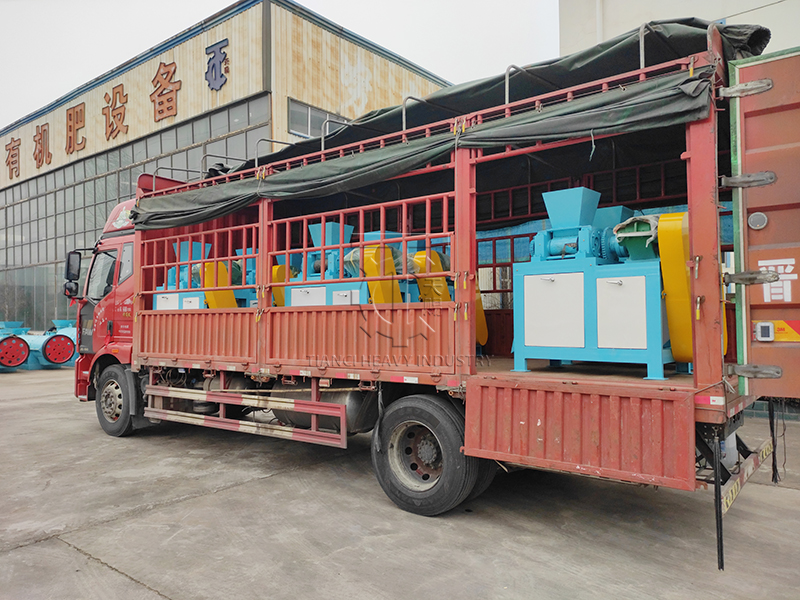

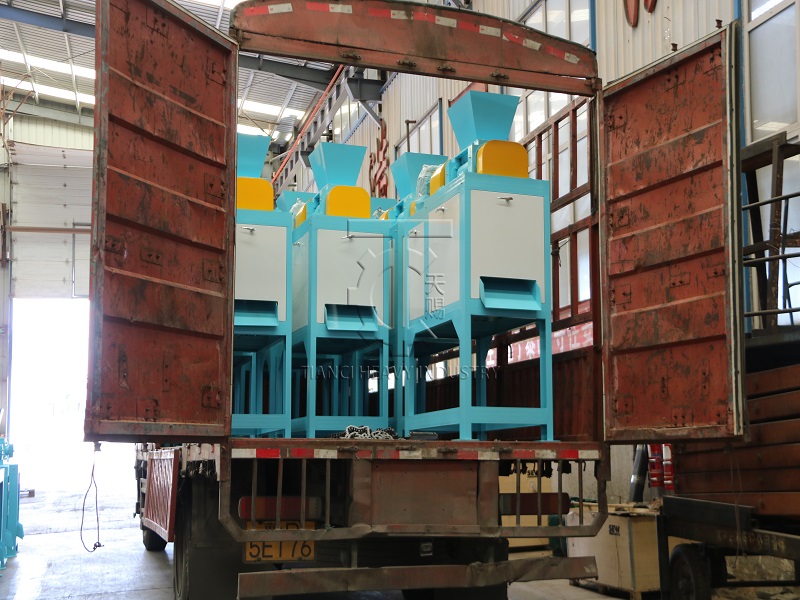

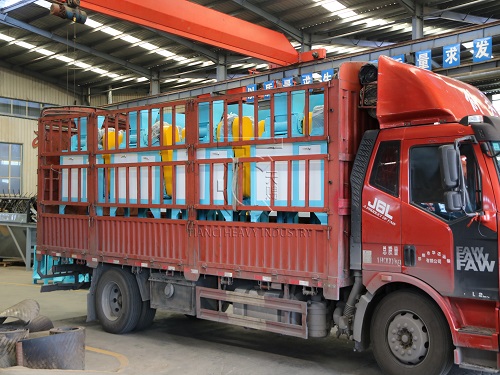

Delivery

From the completion of equipment manufacturing to its successful delivery to your site, Tianci Heavy Industry strictly controls every stage of the shipping process. Tailored to equipment specifications, transportation modes, and destination requirements, we offer robust wooden crate packaging, steel frame securing, moisture-proof and anti-rust treatments, as well as full container (20GP/40HQ) loading solutions to ensure the maximum safety and integrity of your equipment during transit. Prior to shipment, every piece of equipment undergoes professional loading, securing, and rigorous inspection to guarantee stability and reliability during long-distance sea and land transport. Leveraging our extensive experience in international logistics, we have successfully exported our fertilizer equipment to over 50 countries and regions worldwide, including Africa, South America, the Middle East, and Southeast Asia. No matter where you are located, we deliver efficient, safe, and on-time transportation services to help your project kickstart production faster, achieving stable operations and sustained profitability.
