NPK Fertilizer Granulator

Usage: The NPK fertilizer granulator is the equipment used to process powdered raw materials such as Nitrogen, phosphorus, and potassium into granules.

Production Capacity: 0.5–10T/H

Raw Materials: Powdered Nitrogen, phosphorus, potassium, and other elements.

Granule Shape: Spherical or oblate.

Granule Size: 2-10mm

Get quotation

+8618937171932

Product Detail

Product Tags

Product Description

The NPK fertilizer granulator is a granulation device specifically designed for the production of NPK compound fertilizers and is widely used in modern agricultural production. Granulated fertilizers are not only easier to store and transport but also significantly improve fertilization efficiency and nutrient utilization, playing a crucial role in increasing crop yields and agricultural productivity. Whether for small- and medium-sized fertilizer processing plants or large-scale fertilizer manufacturers, the NPK fertilizer granulator is an ideal choice.

Tianci Heavy Industry offers three types of NPK fertilizer granulation equipment: double roller granulators, rotary drum granulators, and disc granulators. You can flexibly choose based on your plant scale and production needs, or simply provide us with your production capacity and facility size, and we will provide you with a free, customized solution.

Double Roller Granulator

Rotary Drum Granulator

Disc Granulator

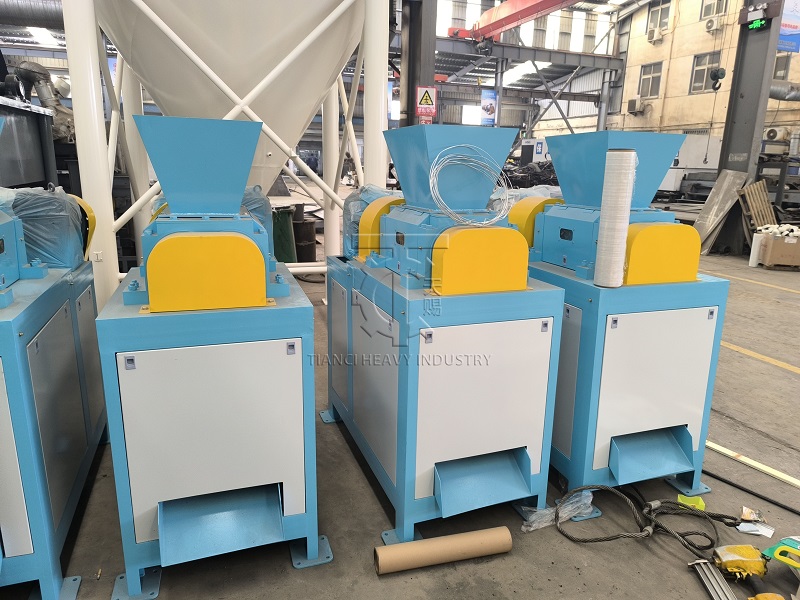

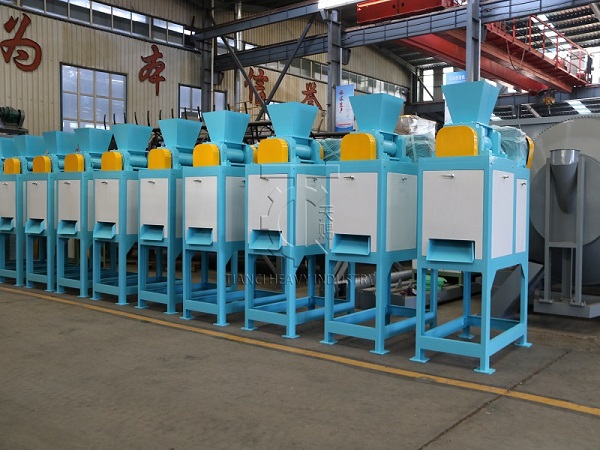

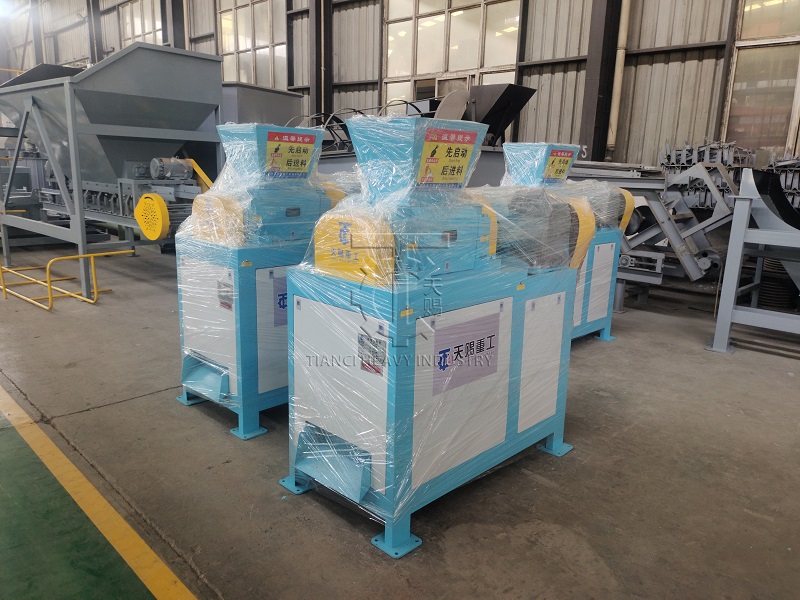

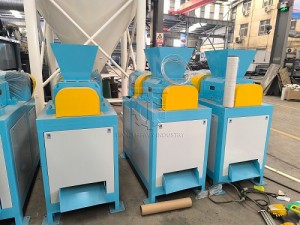

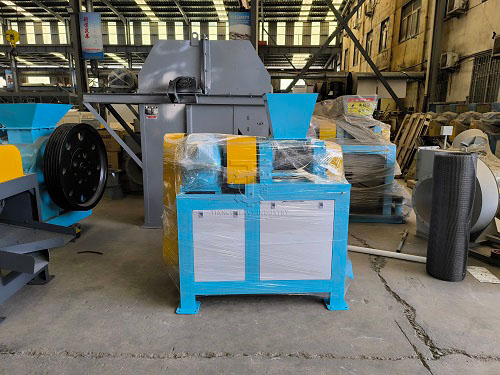

Double Roller Granulator (Suitable for Small and Medium-Sized Dry-Process Production Lines)

The double roller granulator is a dry-process granulation device that applies high pressure via two counter-rotating rolls to directly compress dry powdered NPK raw materials into sheet-like material, which is then crushed and screened to produce flat-spherical granules. The entire process requires no water addition or drying and falls under the category of ambient-temperature dry granulation. This equipment does not require a separate drying or cooling system, and features a small footprint, low energy consumption, and low production costs. It operates with low noise and minimal vibration, and the rollers are made of wear-resistant materials, ensuring a long service life. Although an appropriate amount of binder must be added during production, this does not affect the nutrient concentration or formulation stability of the fertilizer.

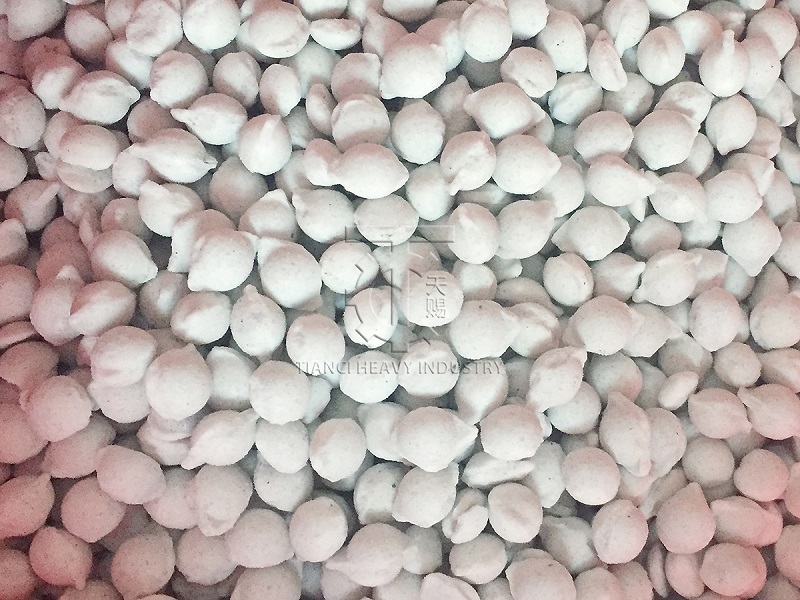

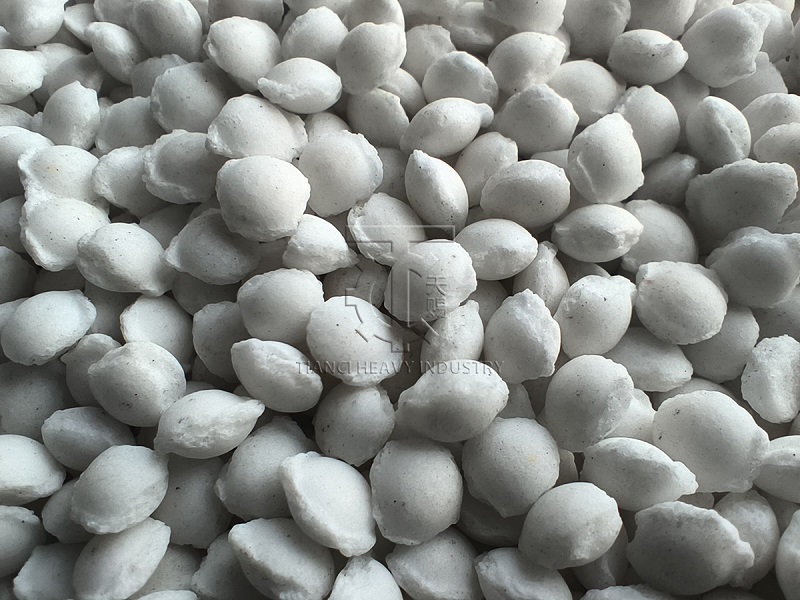

The finished granules have a compact structure and are resistant to breakage; they do not cake or absorb moisture during storage, and the nutrient ratio remains undiluted. This process is particularly suitable for the production of high-concentration NPK and dry powder compound fertilizers, as well as for small- and medium-sized dry powder NPK production lines, high-concentration single-component compound fertilizers, humic acid, mineral-derived potassium humate, and trace element compound base fertilizers.

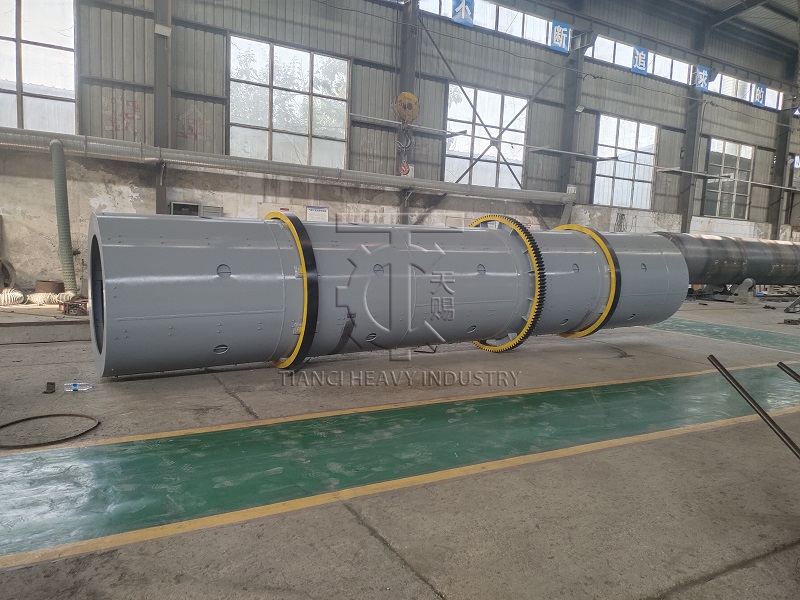

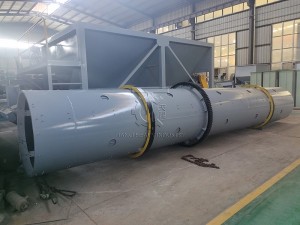

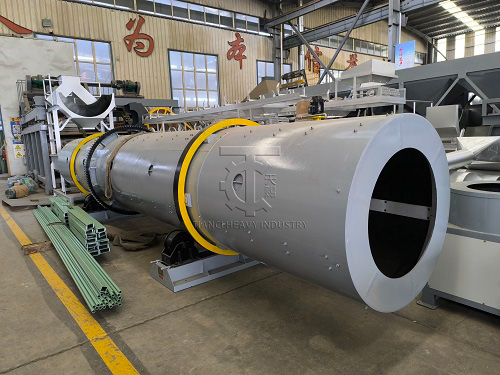

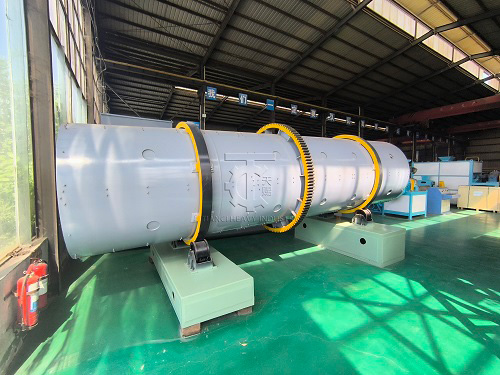

Rotary Drum Granulator (Suitable for Large-Scale Production Lines)

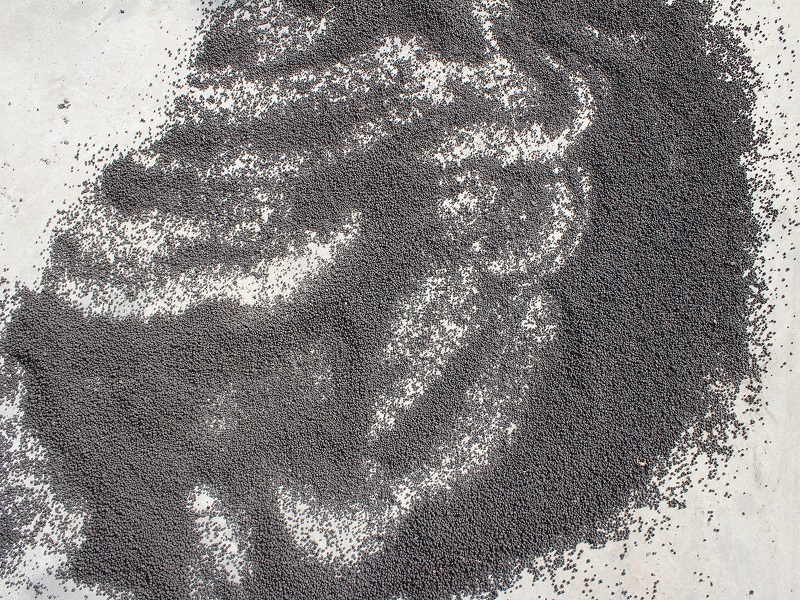

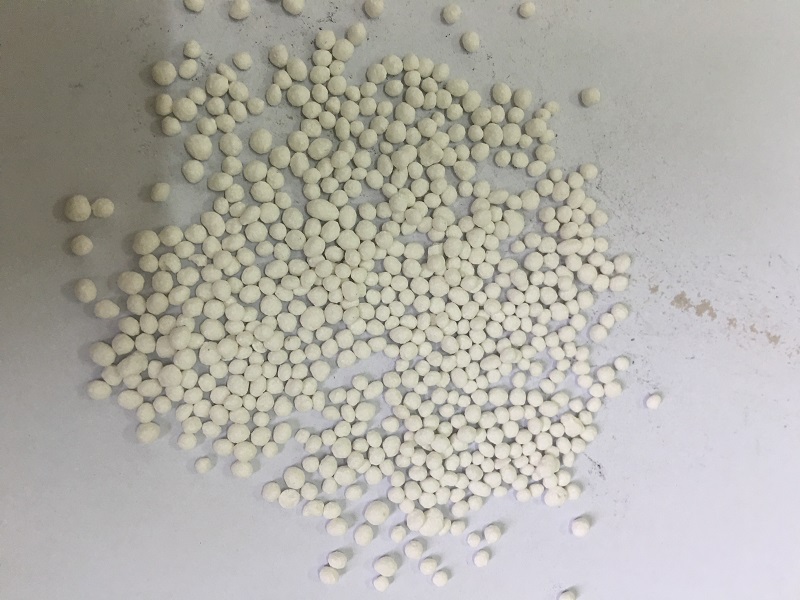

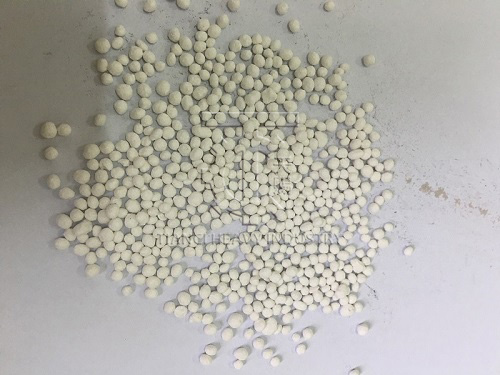

The rotary drum granulator, also known as a rotating drum granulator, is a wet granulation device used in large-scale compound fertilizer production lines. It is suitable for the continuous, large-scale production of powdered NPK raw materials and inorganic compound fertilizers. Its operating principle involves wet rolling agglomeration: after uniformly mixed powdered material enters the drum, it continuously rolls and collides under the combined effects of gravity, centrifugal force, and friction. Simultaneously, water, steam, or a binder is injected, causing the fine powder to agglomerate layer by layer and grow in size, ultimately forming uniform spherical granules. These granules are automatically discharged as the drum tilts and proceed to subsequent drying and cooling processes.

This equipment features a high degree of automation and high single-unit production capacity, ranging from 1 to 10 metric tons per hour. It operates stably, is easy to operate, and can achieve 24-hour continuous production. The drum interior is lined with corrosion-resistant rubber or stainless steel, which prevents sticking and facilitates cleaning. It accommodates a wide range of raw materials and can stably produce high-, medium-, and low-concentration NPK products. The granulation efficiency exceeds 90%, with uniform granules that are resistant to breakage, feature balanced nutrient distribution, and exhibit stable controlled-release performance. It is suitable for large-scale compound fertilizer plants with an annual production capacity of 50,000 metric tons or more and can be used for various formulations with high nitrogen, phosphorus, and potassium content (such as 25-10-5 and 15-15-15), as well as for the production of functional compound fertilizers containing humic acid and amino acids.

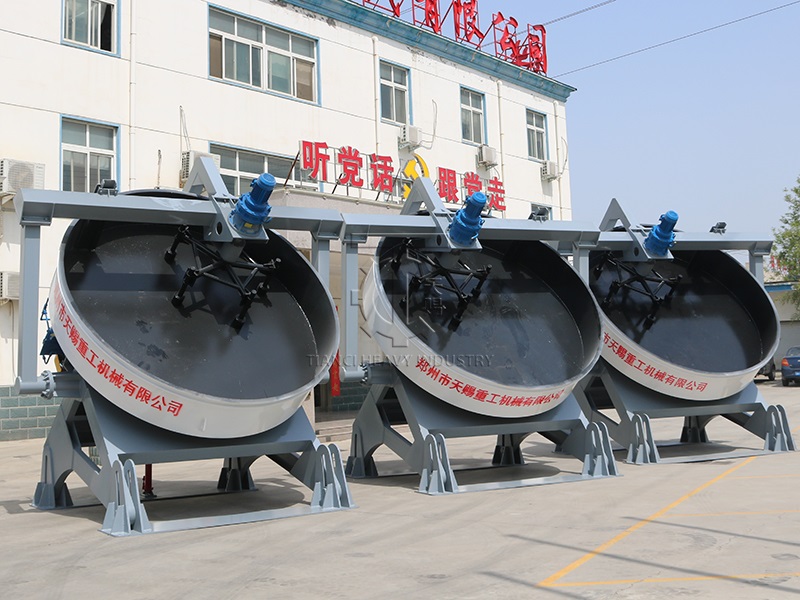

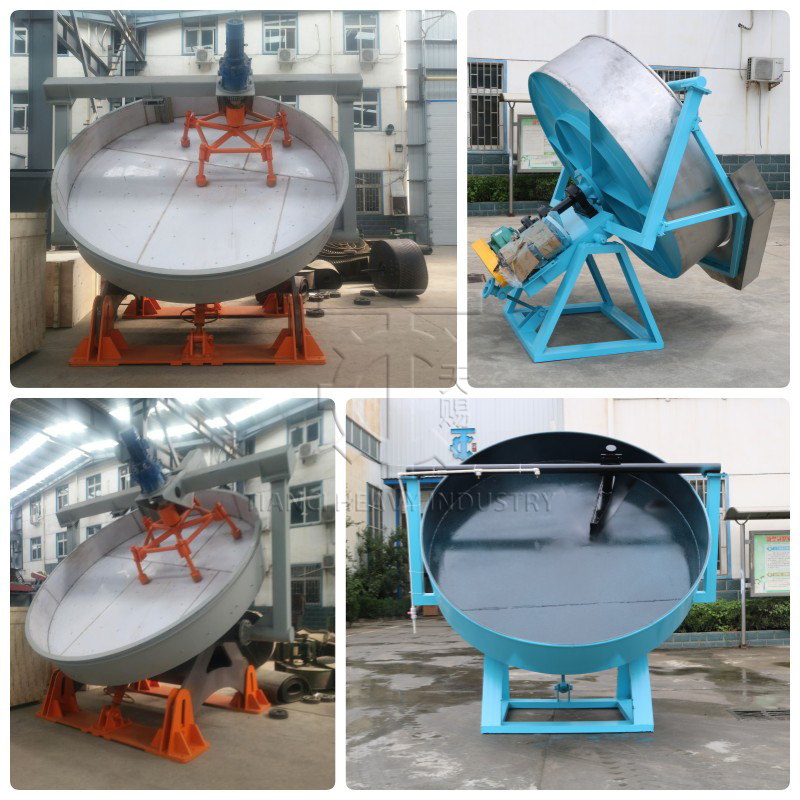

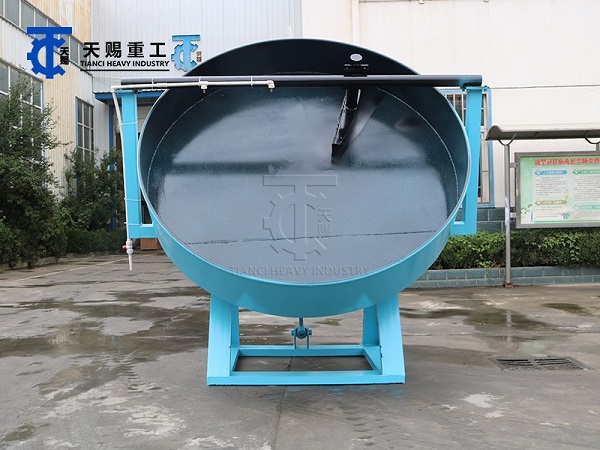

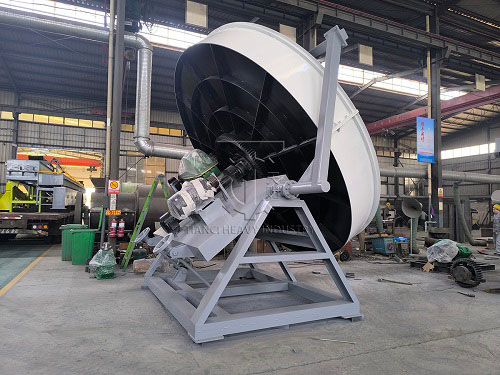

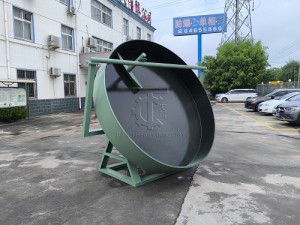

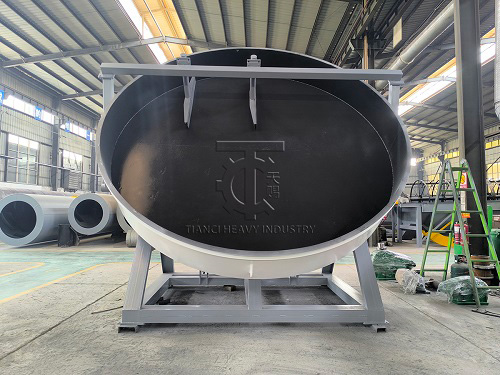

Disc Granulator (Suitable for Small-and Medium-Sized Production Lines)

The disc granulator, also known as a disc-type granulator, is a commonly used wet granulation device in small and medium-sized fertilizer production lines. It is suitable for the batch or small-scale continuous production of powdered NPK compound fertilizers and organic fertilizers. Its operating principle involves an inclined, rotating disc that causes the material to move in a spiral along the disc’s surface under the combined effects of centrifugal force, gravity, and friction, gradually forming nuclei. Under the action of sprayed water mist or a binder, fine powders are continuously adsorbed, growing layer by layer to form granules; once the target particle size is reached, the granules automatically overflow from the edge of the disc.

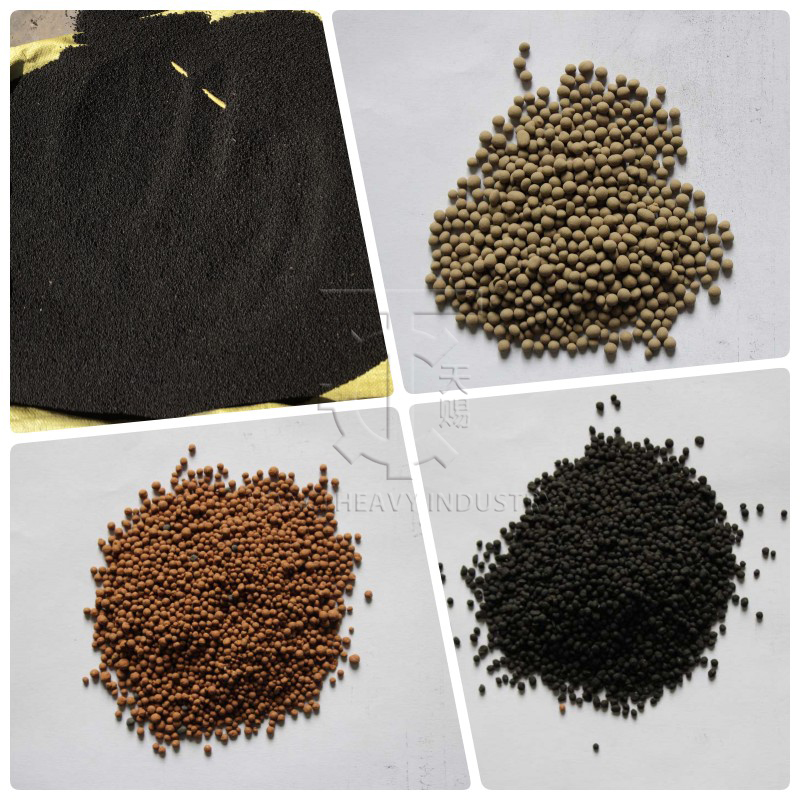

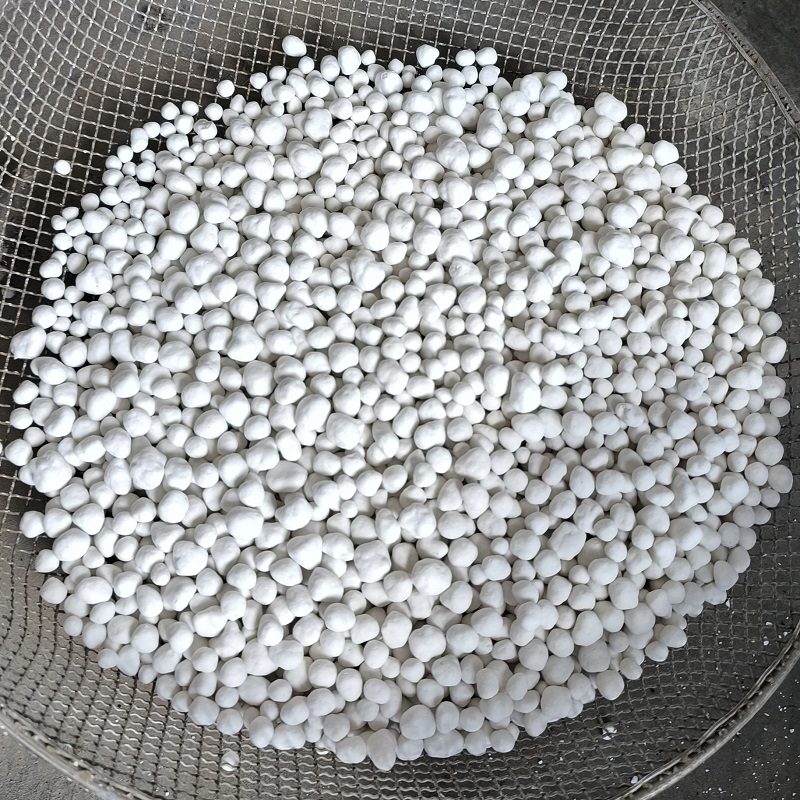

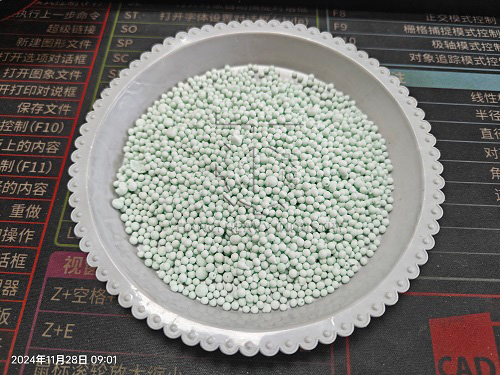

This equipment features a simple structure, a small footprint, and low investment costs, making it ideal for small and medium-sized factories with limited capital. Additionally, the disc angle, rotation speed, and water spray volume are all flexibly adjustable, allowing for precise control over particle size and pellet quality. It is easy to start and stop, making it suitable for production involving multiple formulations, small batches, and frequent material changes. The finished granules feature high sphericity, an attractive appearance, uniform particle size (adjustable from 2–10 mm), low dust content, and resistance to caking, making them easy to package and store. The equipment can produce either fast-acting or controlled-release fertilizers as needed and is widely used in small- and medium-sized NPK fertilizer processing plants with an annual output of 10,000–30,000 metric tons, as well as for specialized fertilizers for fruits and vegetables and seedling fertilizers.

Main Technical Parameters

Double Roller Granulator

Model	DZJ-Ⅰ-1.0	DZJ-Ⅰ-2.0	DZJ-Ⅰ-3.0	DZJ-Ⅰ-4.0	DZJ-II-1.0	DZJ-II-2.0	DZJ-II-3.0
Production capacity (t/h)	1-1.5	1.5-2.5	2.5-3.5	3.5-4.5	1-2	1.5-2.5	2.5-3.5
Power	15kw	18.5kw	22kw	45kw	15kw	18.5kw	22kw
Pressure roller size	Φ150×220	Φ150×300	Φ186×300	Φ300×300	Φ150×220	Φ150×300	Φ186×300
Feeding size	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm	≤0.5mm
Finished product specifications	Φ2.5-φ10	Φ2.5-φ10	Φ2.5-φ20	Φ2.5-φ30	Φ2.5-φ10	Φ2.5-φ20	Φ2.5-φ20
Reducer type	ZQH350	ZQH400	ZQH400	ZQH500	special-purpose	special-purpose	special-purpose

Rotary Drum Granulator

Model	Barrel				Power	Prod Capacity	Overall dimensions L× W ×H	weight
	Inclination	Internal diameter	length	Rotation speed	Power	Prod Capacity	Overall dimensions L× W ×H	weight
	0	m	m	r/min	kw	t/h	m	t
ZG1.2×4	2-2.5	1.2	4	17	5.5	1-3	4.6×2.2×2.0	2.7
ZG1.4×5	2-2.5	1.4	5	14	7.5	3-5	4.8×2.8×2.3	8.5
ZG1.6×6	2-2.5	1.6	6	11.5	11	5-8	7.0×3.2×3.1	12.0
ZG1.8×7	2-2.5	1.8	7	11.5	15	8-10	8.3×3.5×3.3	18.5
ZG2.0×8	2-2.5	2.0	8	11	18.5	10-15	9.1×3.6×3.5	22.0
ZG2.2×8	2-2.5	2.2	8	10.5	22	15-20	9.5×4.4×3.9	28.0

Disc Granulator

Model	Inner diameter (mm)	Side height (mm)	Volume (m³)	Rotation speed (r/min)	Motor power(KW)	Capacity (t/h)	Reducer model
ZL10	1000	250	0.4	24	2.2	0.3-0.5	XW5-59
ZL15	1500	300	1.1	22	5.5	0.5-0.8	ZQ250-48
ZL18	1800	300	1.4	18	5.5	0.6-1.0	ZQ250-48
ZL20	2000	350	1.8	18	7.5	0.8-1.2	ZQ250-48
ZL25	2500	350	2.5	18	7.5	1.0-1.5	ZQ400-23
ZL28	2800	400	3.3	18	11	1.0-2.5	ZQ400-48
ZL30	3000	450	3.9	16	11	2.0-3.0	ZQ350-23
ZL32	3200	500	4.3	13.6	15	2.0-3.5	ZQ350-23
ZL36	3600	550	5.5	11.3	18.5	3.0-5.0	ZQ400-23
ZL45	4500	600	6.5	8	22	4.0-6.0	ZQ250-48

Working Video

Double Roller Granulator

Rotary Drum Granulator

Disc Granulator

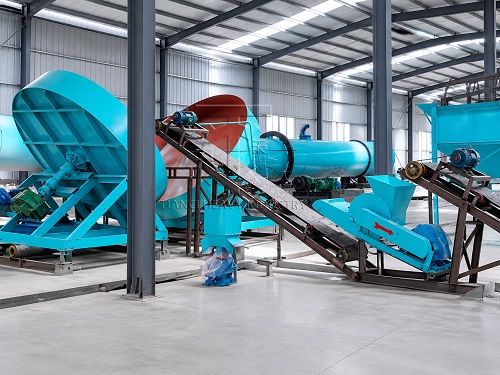

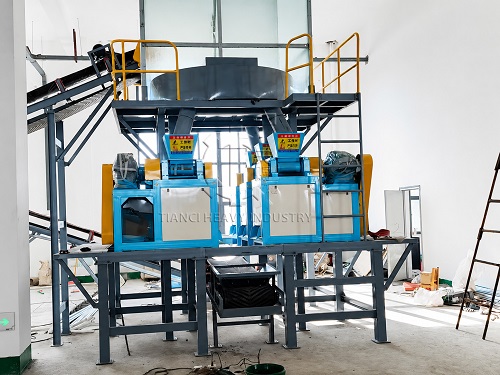

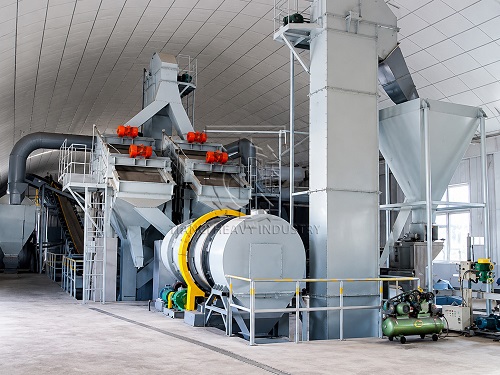

Working Project

We provide one-stop solutions ranging from individual machines to complete fertilizer production lines, tailored to your raw material characteristics, target output, and plant floor space. Our services include process design, equipment selection, production line layout, installation and commissioning, and technical training. Whether you are building a small to medium-scale fertilizer processing plant or a large-scale compound fertilizer production project, we can provide you with stable, efficient, and cost-effective fertilizer granulation solutions.

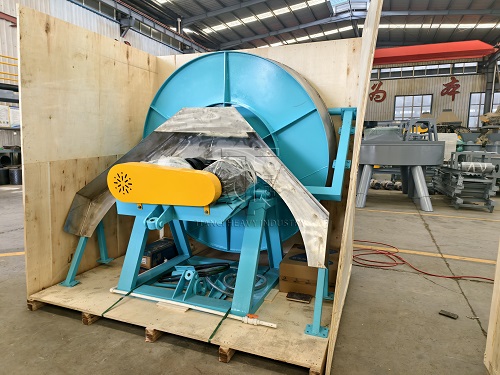

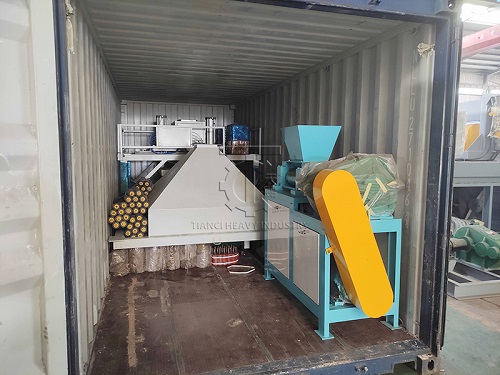

Delivery

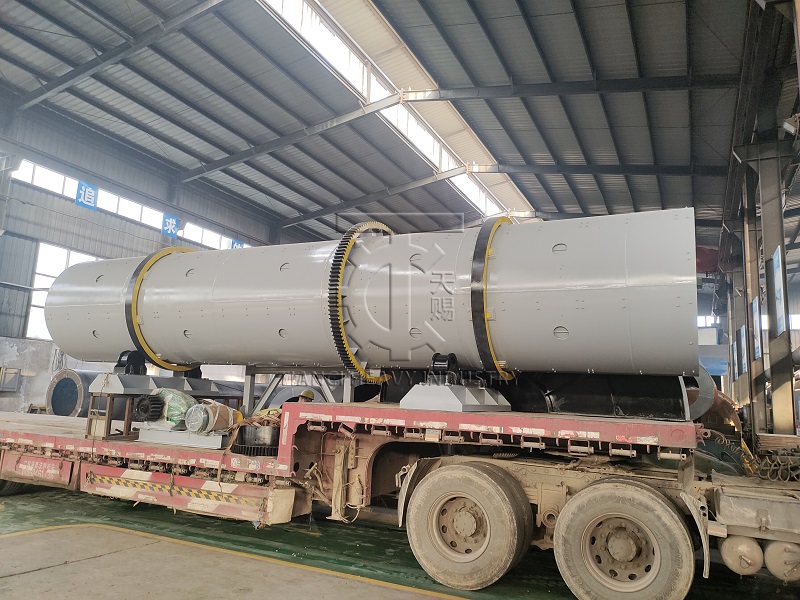

Tianci Heavy Industry strictly controls the entire transportation process from the factory to site delivery. Based on equipment dimensions, transportation methods, and destination requirements, we provide solid wood crates, steel frame reinforcement, and moisture- and rust-proof protection, all customized for 20GP/40HQ FCL shipping. Before shipment, we complete professional container loading, reinforcement, and multiple quality inspections to ensure the equipment remains secure and undamaged during long-distance transport by sea and land. Leveraging our proven expertise in international logistics, our fertilizer equipment is exported to more than 50 countries worldwide, including countries in Africa, South America, the Middle East, and Southeast Asia. We are committed to providing efficient, safe, and on-time transportation services to help your projects achieve rapid production, stable operations, and revenue generation.
